Description

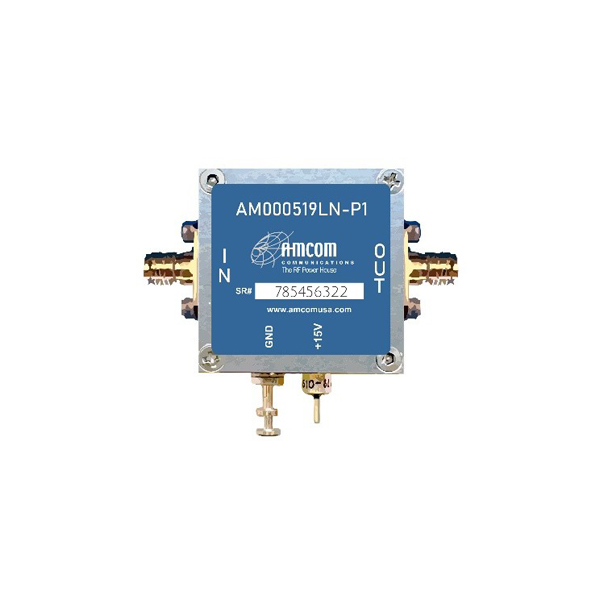

AMCOM’s AM000519LN-P1 is a broadband Low Noise Amplifier module. It is designed for general purpose applications. It operates from 10 KHz to 500 MHz with Noise Figure of 1.9 dB and small signal gain of 46 dB. The module operates using a +15V supply and uses SMA connectors for input and output. This amplifier module is compact at 1.25” (L) x 1.25” (W) x 0.563” (H).
Features:
- Broadband from 10 KHz – 500 MHz
- 11dBm of saturated CW output power
- Gain 46dB, Noise Figure 1.9 dB
- Input / Output matched to 50 Ohms
Applications:
- Lab Work
- Test and Measurements
- Instrumentation & control
Download: Technical Drawing
