Description

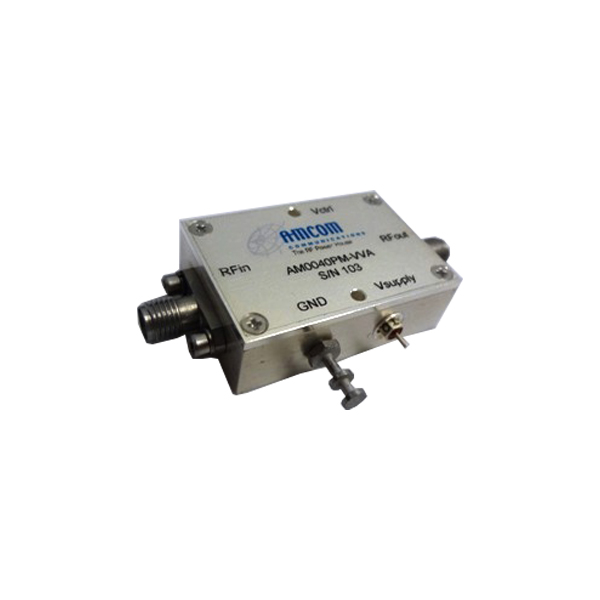

AMCOM’s AM0040PM-VVA is a connectorized, fully matched Voltage Controlled Attenuator module. It has a
wide frequency range from DC up to 4 GHz. It also features high linearity performance. The control is simply
achieved by a DC input voltage (Vctrl) varied between 1 and 5 Volts. In addition, the module requires an external
fixed supply voltage (Vsupply) of 2.7V. The dimensions of the module are 1.5″ (L) x 1” (W) x 0.46” (H).
Features:
- High Frequency Operation up to 4 GHz
- Fully matched connectorized module
- High linearity
- High input P1dB
Applications:
- General purpose Voltage Controlled
Attenuator - Wideband system applications
- Automatic Gain Control
- Feedforward linearizer
Download: Technical Drawing
