Specifications
Configuration:

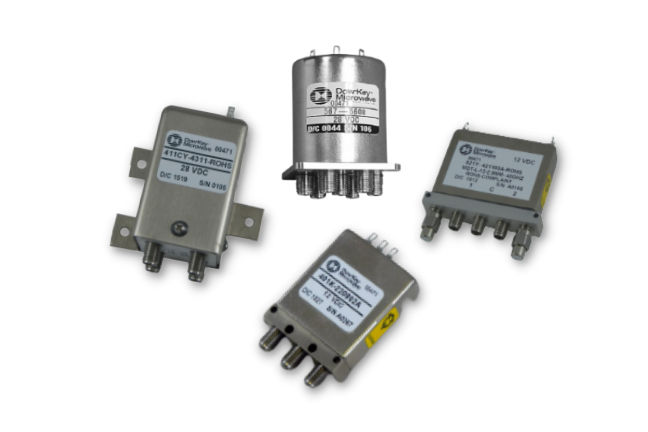

Coaxial Switch configurations include single pole double throw (SPDT), double pole three throw (DP3T), Transfer Double Pole Double Throw (DPDT), Single Pole ‘n’ Throw (SPnT), Miniature Coaxial, and T-Switch with the following actuators: failsafe and latching.
Frequency:
MPG’s Coaxial Switches route RF signals over a broad bandwidth from DC to 40+ GHz
Features:
Our Coaxial Switches support maximum VSWR ranging from 1.1 to 1.95 with minimum isolation ranges from 55 dB to 85 dB and a max insertion loss from .1 dB to .8 dB, depending on configuration.
Ranges:
Operating Voltage (across temperature range): 12, 24 and 28 Vdc
Switching Time:
15 ms to 30 ms max.
