EVAL01-Fenix-RML

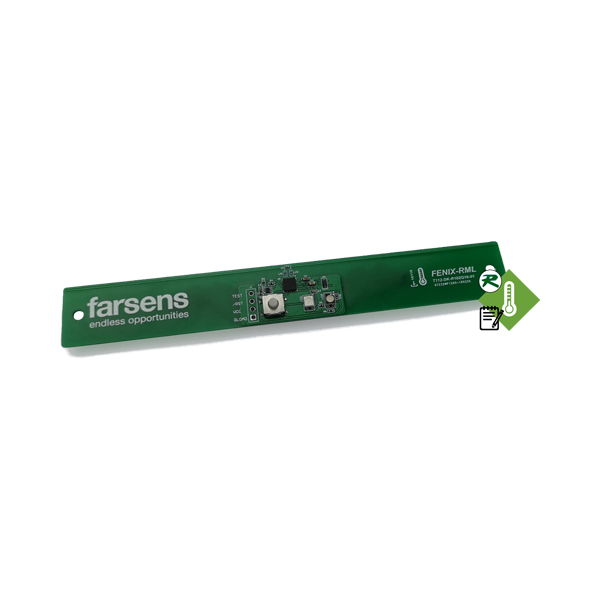

The EVAL01-Fenix-RML is a UHF RFID battery assisted temperature sensor tag with data logger. The device features a TMP112 temperature sensor from Texas Instruments with a temperature range from -40°C to +85°C. The sensor tag provides an accuracy of ±0.5°C in temperature. It can store up to 44,000 temperature samples.

The tag is compatible with EPC C1G2 RFID commercial readers. No custom hardware or commands are required.

The EVAL01-Fenix-RML is ideal for asset or process tracking as it provides a unique identification number plus temperature data – i.e.: perishable foods in cold chain monitoring.



Features:

  • 860MHz-960MHz Operation
  • Read range @ 2W ERP: 5 meters
  • EPC Class-1 G2 compliant
  • ISO 18000-6 Type C compliant
  • 160-bit EPC & 96-bit TID
  • Temperature range: -40°C a +85°C
  • Temperature accuracy: ±0.5°C

DATA LOGGER FUNCTIONALITIES

  • Memory capacity: up to 44k samples
  • Programmable sample intervals
  • Programmable threshold alerts
  • Battery monitor
  • Fast data download time
  • Battery free data download
