10.7MHz 2 pole crystal filter with 12.0kHz 3dB bandwidth
- Comprehensive stocks
- Custom specifications available
Product Description

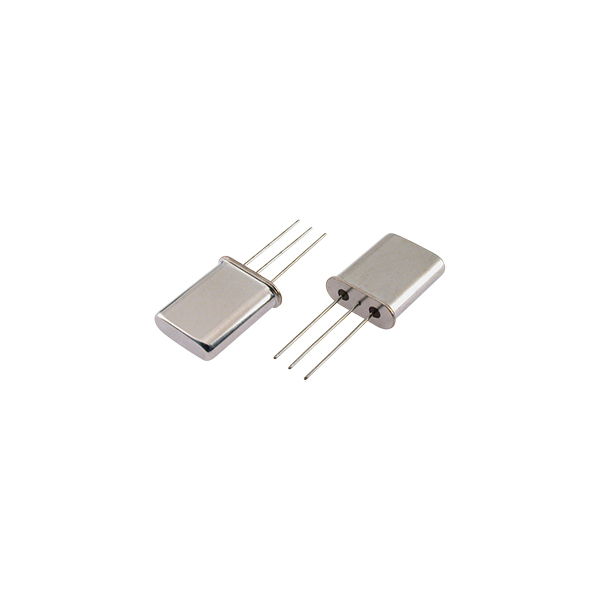

Featuring insertion loss of just 1.5dB, the GMCF-10 10G12A 2 pole crystal filter from Golledge with centre frequency of 10.7MHz. Featuring a 12kHz 3dB bandwidth, the GMCF-10 10G12A is available in industry standard HC49 style package. You can find full specifications here.
Specifications
| Centre frequency | 10.7MHz |
| Dimensions | 11.05 x 4.65 x 13.46mm |
| Operating temperature range | -20 to +70°C |
| Number of poles | 2 |
| Pass band | -3dB @ ±6.0kHz min |
| Attenuation band | -20dB @ ±25.0kHz max |
| In-band ripple | 0.5dB max |
| Insertion loss | 1.5dB max |
| Guaranteed attenuation | -35dB max +300 ~ +1000kHz -40dB max -200 ~ -1000kHz |
| Termination | 3300Ω // 1.5pF |
| Package style | HC49/3L |
Download: PDF
