Specifications
Configurations:
Single pole double throw (SPDT), single pole double throw terminated and SP6T terminated in the following modes: latching, normally open terminated, latching terminated, self cut off.
Frequency:

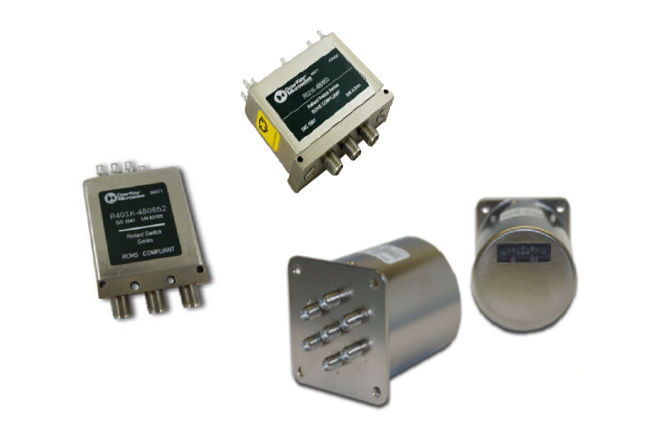

Our High Repeatability Switches route RF signals over a bandwidth from DC-1 to 26.5 GHz.
Features:
Our High Repeatability Switches support maximum VSWR 1.15 to 1.80, with minimum isolation ranges from 55 dB to 85 dB, and a maximum insertion loss from .2 dB to 4 dB.
High Repeatability Switches can be designed to meet customer specifications across the following ranges:
Operating Voltage:
12-24 Vdc
Switching time:
15 ms max.
