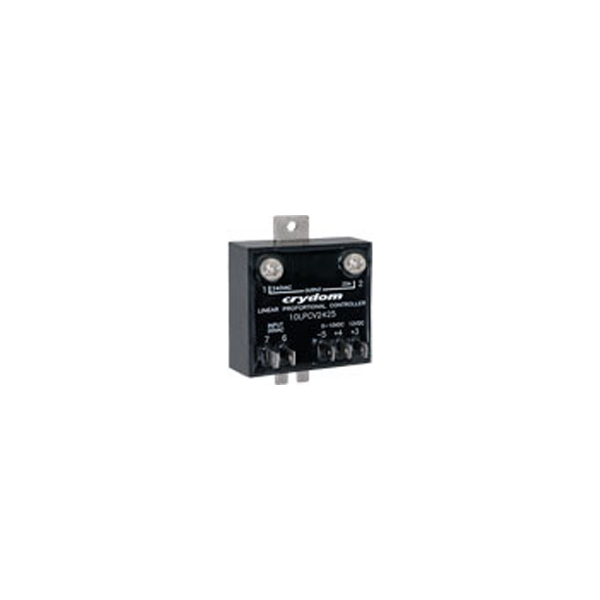

Crydom’s LPCV Series of Solid State Linear Proportional Controllers offer precise control of the power delivered to loads of up to 110 Amps at 300 VAC.
By using phase angle control on the output SCRs, the output power is varied linearly in response to an analog control signal at the input of the LPCV proportional controller. The control signal can be a DC voltage or a DC current.
Many applications are well suited for the use of a LPCV analog input controller, such as: infrared and quartz heaters, resistive heating elements, rectified DC motors, industrial temperature controllers, conveyor speed control, among others.
| Specification | Description |
|---|---|
| Part Number | 10LPCV24110 |
| Category | LPCV Series |
| Series | LPCV Series |
| Control Voltage Range | 0-10 VDC |
| Maximum Load Current | 110 A |
| Operating Voltage Range | 20-300 VAC |
| Mounting | Panel |
| Status | Active |
| Datasheet | Datasheet |
| CAD Drawings | CAD Drawings |
| Check Stock | Check Stock |
