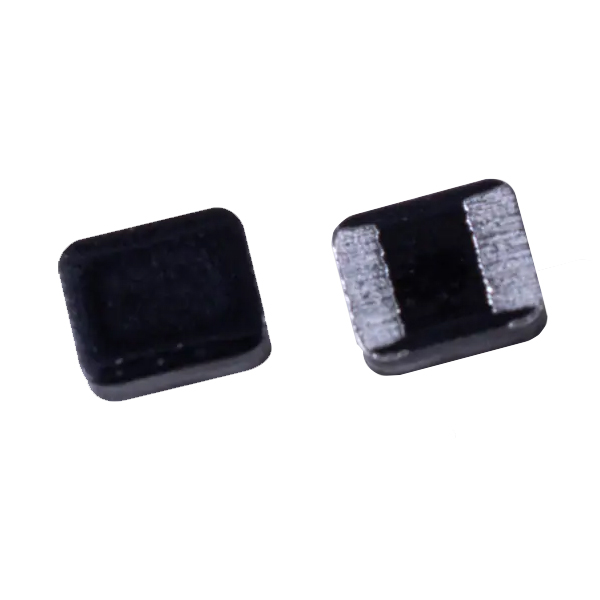

Coiltronics/Eaton MPI20-V1 Miniature Power Inductors feature a 2.2A to 5.5A current range, maximum 2.2µH inductance range, and -40°C to +125°C temperature range. These inductors offer a high current carrying capacity in a compact 0806 footprint, rugged construction, and a high current, low power design. Coiltronics/Eaton MPI20-V1 Miniature Power Inductors are ideal for digital cameras, portable media devices, and mobile/smart phone applications.
Specifications:
- High current carrying capacity in a compact 0806 (2016 metric) footprint
- Magnetically shielded, Low EMI
- Rugged construction
- DC-DC converter applications up to 3MHz
- -40°C to +125°C operating temperature range
- Inductance range from 0.47μH to 2.2μH
- Current range from 2.2A to 5.5A
- 2.2mm x 1.8mm footprint surface mount package in 1.0mm height maximum
- Moisture Sensitivity Level (MSL): 1
Applications:
- Mobile/smart phones
- Handheld/mobile equipment
- Tablets/e-readers
- Digital cameras
- Wearable devices
- Notebook/netbook/laptop regulators
- Portable media players
Download: PDF
