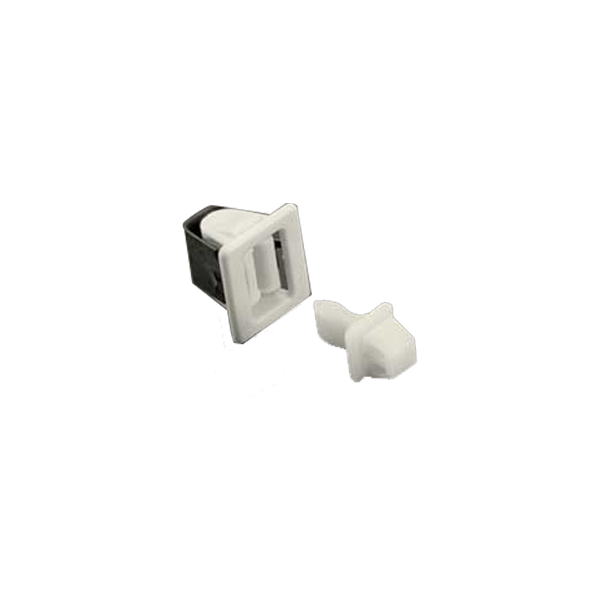

Product Schematics
Specifications |
||||||||||||||||||
| Part Number | Spring Thickness | Part | Hole Size | Panel Thickness | Average Push-In / Pull-Out Forces* |
|||||||||||||
| 263-000006-00-0017 | N/A | STRIKE | .286″ – .291″ SQ. HOLE | .032″ – .052″ THK. PANEL | 10 LBS | |||||||||||||
| 7800-02-9909 | 0.02 | LATCH | .515″ x. 656″ RECT. HOLE | .035″ TO .060″ THK. PANEL | 10 LBS | |||||||||||||
Material: Latch – Nylon 66,
Spring – Metal,
Strike – Celcon
*Pull-out force given only as a guideline. User should evaluate for specific applications
NOTE: Dimensions listed are nominal.
