Description

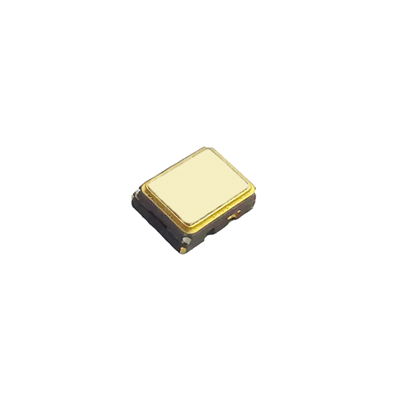

Low phase noise Temperature Compensated Crystal Oscillator (TCXO)
Features and Benefits
– Frequency range: 8-60MHz
– Supply voltage: 3.0/3.3V
– Current Consumption: 7mA Max
– Output waveform: Clipped Sine or CMOS/TTL
– Frequency stability vs. operating temperature: ±0.28ppm
– Aging per year: ±1.0ppm Max
– Phase noise@1KHz: -138dBc/Hz
– Operating temperature: -40°C to +85°C
– Size:5.0×3.2×1.6mm
Typical Applications
– Cellular Base Stations
– Instrumentation
– Microwave Applications
– Radar reference
