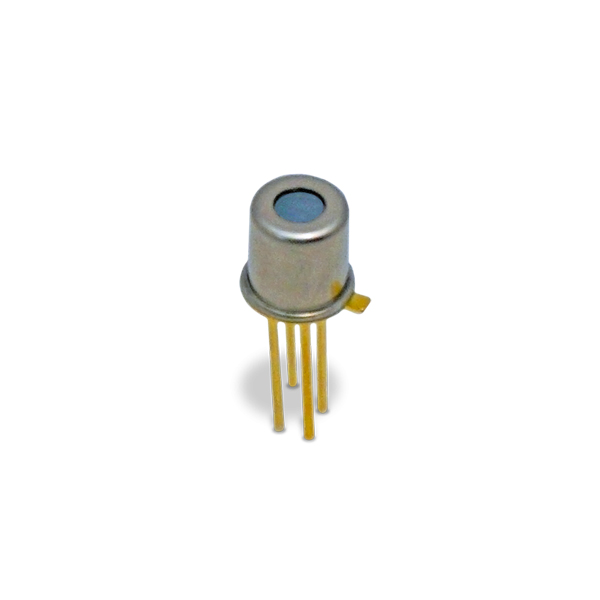

TPiD 1T 0122 L3.0 Miniature Thermopile with integrated Lens
Excelitas’ TPiD 1T 0122 L3.0 Miniature Thermopile Detector features a compact TO-46 housing and integrated focusing lens. It includes the thermopile and thermistor.
Description
This is the Lensed Version of our Miniature Thermopile Detectors in a compact TO-46 housing and features a specially designed sensing chip. It comes standard with an internal Thermistor as temperature reference for Thermopile temperature compensation. The built-in lens provides the narrow field-of-view of this device for long-range non-contact temperature measurement and monitoring applications.
Specifications:
- Responsivity: 77 V/W
- Sensitivity S100 µV/K
- Noise: 42 nV/√Hz
- Time Constant: 15 ms
- Housing with optical window: TO-46
- Field-of-view: 12°
