GNSS SMART ANTENNA MODULE
LS2003C-G is a complete standalone GNSS smart antenna module, including embedded patch antenna and GNSS receiver circuits. The module can simultaneously acquire and track multiple satellite constellations that include GPS, GLONASS, GALILEO, QZSS and SBAS. It features low power and small form factor. Besides, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment.
This module supports hybrid ephemeris prediction to achieve faster cold start. One is self-generated ephemeris prediction (called EASY) that is no need of both network assistance and host CPU’s intervention.
This is valid for up to 3 days and updates automatically from time to time when GNSS module is powered on and satellites are available. The other is server-generated ephemeris prediction (called EPO) that gets from an internet server. This is valid for up to 14 days. Both ephemeris predictions are stored in the on-board flash memory and perform a cold start time less than 15 seconds.
-
SUB-METER MODULES ( L1+L5 ) +3.3V
LOCOSYS MC-1612-Vxx series are high-performance dual-band GNSS positioning modules that are capable of tracking all global civil navigation systems. They adopt 12 nm process and integrate efficient power management architecture to perform low power and high sensitivity. Besides, concurrent reception of L1 and L5 band signals mitigates the multipath delay and achieves sub-meter position accuracy.
The modules support hybrid ephemeris prediction to achieve faster cold start. One is self-generated ephemeris prediction (called EASY) that is no need of both network assistance and host CPU’s intervention. This is valid for up to 3 days and updates automatically from time to time when GNSS module is powered on and satellites are available. The other is server-generated ephemeris prediction (called EPO) that gets from aninternet server. This is valid for up to 14 days. Both ephemeris predictions are stored in the on-board flash memory and perform a cold start time less than 15 seconds.
-
SUB-METER MODULES ( L1+L5 ) +1.8V
LOCOSYS MC-1010-Vxx series are high-performance dual-band GNSS positioning modules that are capable of tracking all global civil navigation systems. They adopt 12 nm process and integrate efficient power management architecture to perform low power and high sensitivity. Besides, concurrent reception of L1 and L5 band signals mitigates the multipath delay and achieves sub-meter position accuracy.
The modules support hybrid ephemeris prediction to achieve faster cold start. One is self-generated ephemeris prediction (called EASY) that is no need of both network assistance and host CPU’s intervention. This is valid for up to 3 days and updates automatically from time to time when GNSS module is powered on and satellites are available. The other is server-generated ephemeris prediction (called EPO) that gets from aninternet server. This is valid for up to 14 days. Both ephemeris predictions are stored in the on-board flash memory and perform a cold start time less than 15 seconds.
-
SUB-METER MODULES ( L1+L5 ) +3.3V
LOCOSYS MC-1010-Vxx series are high-performance dual-band GNSS positioning modules that are capable of tracking all global civil navigation systems. They adopt 12 nm process and integrate efficient power management architecture to perform low power and high sensitivity. Besides, concurrent reception of L1 and L5 band signals mitigates the multipath delay and achieves sub-meter position accuracy.
The modules support hybrid ephemeris prediction to achieve faster cold start. One is self-generated ephemeris prediction (called EASY) that is no need of both network assistance and host CPU’s intervention. This is valid for up to 3 days and updates automatically from time to time when GNSS module is powered on and satellites are available. The other is server-generated ephemeris prediction (called EPO) that gets from aninternet server. This is valid for up to 14 days. Both ephemeris predictions are stored in the on-board flash memory and perform a cold start time less than 15 seconds.
-
DR MODULE

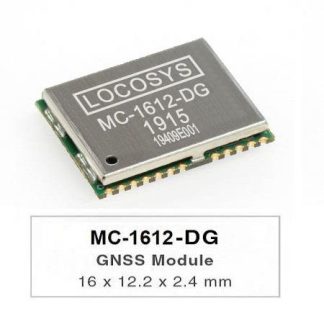

LOCOSYS MC-1612-DG is a single-band multi-system with an ARM base processor. It not only supports GPS, GLONASS, GALILEO, QZSS , but also has a flash memory, TCXO, RTC crystal, LNA and SAW filter, and embedded MEMS sensors (6-axis accelerometers gyros), 1-hole pressure (option) Micro-Electro-Mechanical Systems (MEMS) sensor, equipped with DR software. The extended Kalman filter algorithm combines GNSS and MEMS sensor data with a weighting function that relies on GNSS signal quality. With adverse GNSS conditions in urban canyons, tunnels, or parking garages where DR boosts the accuracy, and the software fills the gaps. It supports three dimensional DR, Standard NMEA output, fully supports various map mapping demand.
ADR mode, MC-1612-DG have high-precision positioning and dead reckoning performance, offers real-time 1.5m accuracy positioning and heading with low-power consumption. The software includes features to receive and use data from the built-in sensors along with external signals for wheel speed and Forward/Reverse direction, the vehicle signals are used to provide a high level of accuracy in the navigation solution. It features high sensitivity, low power and ultra-small form factor, and provide user the superior performance.
-
SUB-METER MODULES ( L1+L5 ) +3.3V
LOCOSYS MC-1612-Vxx series are high-performance dual-band GNSS positioning modules that are capable of tracking all global civil navigation systems. They adopt 12 nm process and integrate efficient power management architecture to perform low power and high sensitivity. Besides, concurrent reception of L1 and L5 band signals mitigates the multipath delay and achieves sub-meter position accuracy.
The modules support hybrid ephemeris prediction to achieve faster cold start. One is self-generated ephemeris prediction (called EASY) that is no need of both network assistance and host CPU’s intervention. This is valid for up to 3 days and updates automatically from time to time when GNSS module is powered on and satellites are available. The other is server-generated ephemeris prediction (called EPO) that gets from aninternet server. This is valid for up to 14 days. Both ephemeris predictions are stored in the on-board flash memory and perform a cold start time less than 15 seconds.
-
RTK MODULES

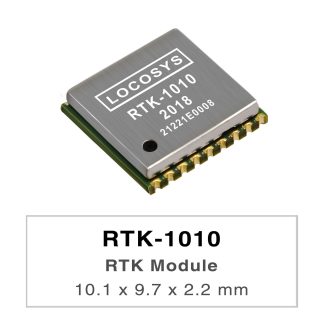

The RTK-1010 is a high-performance dual-band GNSS RTK module that designed for applications requiring centimeter level positioning accuracy. It adopts 12 nm process and integrate efficient power management architecture to perform low power and high sensitivity.
The module supports concurrent reception of GPS, GLONASS, BeiDou, GALILEO, and QZSS to improve the availability and reliability of RTK solution even in the harsh environment.
-
RTK For Android System

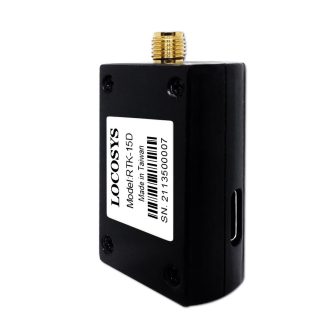

LOCOSYS RTK-15D product is L1 + L5 Dual-frequency and multi-constellation RTK positioning solution which provides 1cm high precision positioning accuracy. The positioning accuracy specification is “cm level” which is directly connected to the USB and allows every Android device to be immediately upgraded and quickly implement to (RTK) high-precision positioning accuracy. The receiver support GPS, GLONASS, BeiDou, GALILEO, QZSS, SBAS and other global multi-constellations, even in harsh environments, it can improve the continuity and reliability of positioning.
RTK-15D product via Type-C cable easy with any Android smart phone or tablet which targets for river channel exploration, collect waypoints, construction site mapping system, highway mapping, pipeline mapping and other geographic mapping system.
Besides, LOCOSYS provide unique “RTKFox-15D” App SW has a user-friendly operation interface, which is convenient for users to set to “Base Station mode” or “Rover mode” by themselves. This is an extreme convenient product. It features powerful compatibility with other GNSS receivers in the market by flexible USB interfaces can quickly equip on Android system with centimeter accurate RTK.
-
RTK BOARD (L1+L5)

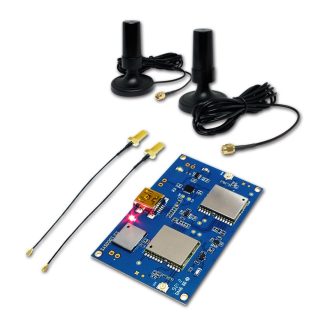

LOCOSYS RTK-4057-MHPD is a L1+L5 Dual-Frequency Position with Heading RTK Board, which targeting for precision autonomous guided vehicle, smart agriculture, unmanned aerial vehicle, and any other unmanned system to integrate in.
This receiver board provides fast precise heading and RTK position. It supports global multiple constellations, including GPS, GLONASS, BeiDou, GALILEO, QZSS and SBAS to improve the continuity and reliability of precise heading and RTK position even in the harsh environment.
Besides, it features powerful compatibility with other GNSS receivers in the market by flexible USB interfaces, smart hardware design and output standard NMEA formats. Versatile, compact size, complete driver support, low power and high update rate.
LOCOSYS RTK-4057-MHPD meets Windows, Linux, Raspberry Pi and Nvidia developer requirements or system integrator need, and helps you quickly realize unmanned application positioning function.
