16MM RECTANGULAR PUSH SWITCH
16mm Rectangular Push Switch Type: 16mm push button switch, rectangular Rating: 250VAC 5A/24VDC 6A Contact: 1NO + 1NC Switch action: Latching Terminals: solder tabs See Accessories page for Lamps and Lens options
Showing 1–24 of 113 results
-
-
16MM ROUND PUSH SWITCH
Type: 16mm push button switch, round Rating: 250VAC 5A/24VDC 6A Contact: 1NO + 1NC Switch action: Latching Terminals: solder tabs See Accessories page for Lamps and Lens options -
1ZAP2 / 1VAP2 – Door Switches
Features: Installation in electrical facilities, equipment doors, and other openings helps ensure safety by reliably preventing accidents. A Basic Switch if built in to provide a large switching capacity and long service life. Lineup Operation Built-in Switch Model Push operation Pull operation Self-reset Hold Z-15GL42-B 1ZAP2 V-15-1B6 1VAP2-1 1VAP2-2 V-15-3B6 1VAP2-6 Download: PDF -
2121 Series
RATING : 16A 125/250VAC T105 16A 250V ~ T125 16(6)A 250V ~ T125 INSULATION RESISTANCE : DC 500V 100MΩ OR MORE CONTACT RESISTANCE : DC 2-4V 1A 30mΩ OR LESS WITHSTAND VOLTAGE : AC 1500V FOR 1 Min AMBIENT TEMPERATURE : AC 1500V FOR 1 Min ELECTRICAL LIFE : 10,000 CYCLES Download: PDF -

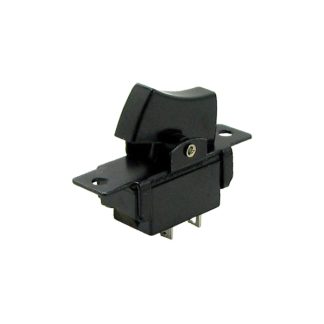

3001 Series
RATING : 10A 125VAC, 6A 250VAC (UL,CUL) INSULATION RESISTANCE : DC 500V 100MΩ OR MORE CONTACT RESISTANCE : DC 2-4V 1A 30mΩ OR LESS WITHSTAND VOLTAGE : AC 1500V FOR 1 Min Download: PDF -

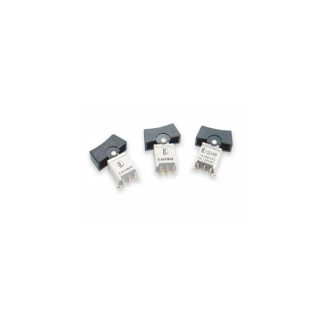

4B Series
Specifications Contact Rating: Dependent upon contact material See specification. Mechanical Life: 50,000 make-and-break cycles. Contact Resistance: 20 mΩmax. initial @ 2-4VDC 100mA for both silver and gold plated contacts. Insulation Resistance: 1,000 MΩ min. Dielectric Strength: 1,000 Vrms min.@sea level. Operating Temperature: -30°C to 85°C. Materials: Case & Bushing: Glass filled nylon 6/6,flame retardant, heat stabilized (UL94v-0). Actuator:... -
601X Series
RATING : 16A 125VAC, 10A 277VAC (UL,CUL) 16(6)A 250V~T125 (ENEC,CQC) INSULATION RESISTANCE : DC 500V 100MΩ OR MORE CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS WITHSTAND VOLTAGE : AC 1500V FOR 1 Min OPERATIONS : SPST, SPDT Download: PDF -
AUTO CHECK PIEZO ELECTRIC SWITCH
Description EVERSWITCH Touch Metal technology has resolved the concerns of the remote system operators. With EverSwitch self-diagnostic capability, system operators are able to continuously monitor that the switches and keypads work properly. In locations where public safety is a concern, stations are often located in unattended areas and can be subject to vandalism in addition... -
AUTO CHECK PIEZO ELECTRIC SWITCH
EVERSWITCH Touch Metal technology has resolved the concerns of the remote system operators. With EverSwitch self-diagnostic capability, system operators are able to continuously monitor that the switches and keypads work properly. In locations where public safety is a concern, stations are often located in unattended areas and can be subject to vandalism in addition to... -
-
C&K Switches ATP Anti-Vandal Sealed Pushbutton Switches
C&K Switches ATP Anti-Vandal Sealed Pushbutton Switches are high-strength, lightweight switches that are IP67 rated, ensuring their suitability for operating in harsh conditions and their ability to withstand potential malicious damage. C&K ATP switches are also corrosion-resistant and offer an industry-standard ring version in 19mm and 22mm diameters. These UL-certified switches use a scratch-resistant actuator with housings made from robust stainless steel, making them particularly effective for use in remote and unsupervised locations where resilience to damage from vandalism is vital. ATP offers a range of actuator styles and a variety of illumination indicator colors. ATP19 offers actuation interfaces with a fixed-ring, spot, raised, raised-spot, raised-power, and dome configurations. ATP22 is avaialble with flat, moving-ring, and ring-plus-power-indicator actuators.
-
C&K Switches RTF 7.2mm Coded Rotary DIP Switches
C&K Switches ATP Anti-Vandal Sealed Pushbutton Switches are high-strength, lightweight switches that are IP67 rated, ensuring their suitability for operating in harsh conditions and their ability to withstand potential malicious damage. C&K ATP switches are also corrosion-resistant and offer an industry-standard ring version in 19mm and 22mm diameters. These UL-certified switches use a scratch-resistant actuator with housings made from robust stainless steel, making them particularly effective for use in remote and unsupervised locations where resilience to damage from vandalism is vital. ATP offers a range of actuator styles and a variety of illumination indicator colors. ATP19 offers actuation interfaces with a fixed-ring, spot, raised, raised-spot, raised-power, and dome configurations. ATP22 is avaialble with flat, moving-ring, and ring-plus-power-indicator actuators.
-
Cam switches
Cam switches PKT, PKS and PKH types are destined to wide range of applications in many industries and building automation. They are used particularly as a isolator, changeover, mutti-step and selector. There are available in many type of switching programs
-
Cap for Tact Switch LED MultiColor (RGB)
Cap for Tact Switch LED MultiColor (RGB). The caps are available in black, silver and transparent as well as with different standard markings. Custom markings can also be implemented. -
Capacitive Touch Switches (EC Series)
Description ITW Switches EC Series, these rugged electro touch switches are available in stainless steel or aluminum alloy housings and come in momentary or maintained action. The customized symbol make the series EC ideal for many applications in the transportation, security, shopping mall, food processing and medical markets. Features Momentary or Maintained Action Stainless Steel... -
Coaxial Switches
Founded in 1945, MPG Solutions flagship Switch brand Dow-Key remains the world’s largest manufacturer of electromechanical RF Switches, including our durable and reliable line of Coax Switches (Coaxial Switches). Designed to reliably route microwave signals or RF energy from point to point within a transmission line, Dow-Key Microwave’s Coax Switches are equally at home in an industrial environment, such as large RF communication systems and networks, or within the lab supporting RF testing equipment.
Our technical team and experienced engineers will help you determine the optimal Coaxial Switch or Coax Relay solution for your needs from our extended line of off-the-shelf and custom-designed products.
-
Combination Switch
The CSW-Series is a versatile combination switch featuring a multi-position rotary, a three-position lever, and momentary pushbutton functions. This compact switch offers superior current ratings, IP67 sealing protection,customizable legends and it is compatible with a variety of popular connectors. Together, these features make the CSW-Series cost effective, easy to install and well suited for a... -
CR1102H Series Tactile Switch
The CR1102H Series tactile switch is in ammo packaging for ease of use. A through-hole switch, the CR1102H is a momentary SPST tactile switch button with a choice of actuation force ranging from 100gF up to 260gF. Actuator travel is .25 ? .1mm and actuator lengths range from 4.3mm up to 9.5mm, with two square... -
CR1104S Series Tactile Switch
The CR1104S Series tactile IP65 switch is in ammo packaging for ease of use. This process sealed momentary switch offers packaging in three different quantities. Actuation force choices are 200gF and 260gF with actuator travel of .30 or .2mm. Actuator length options for the sealed tact switch range from 4.3mm to 7.0mm. Contact us with... -
CS1101 Series Tactile Switch
Sub-miniature in size, the SPST, momentary CS1101 small tactile switch is available with gull wing or J-lead surface mount termination. Actuator length options are 4.3mm and 5.0mm, with actuation force of 180gF. Actuator travel is .25mm on this surface mount tactile switch. Check out our SP switch if you require a different type of terminal option. Features:... -
D162 Series
D162 tact switches feature excellent coplanarity and right angle for pick and place.
-
-
DIP Switch
Product Details Model Number:64SWT-AB6B083 Origin:China (mainland) Key Specifications/Special Features: Specifications Contact rating: 100mA at 50Vdc non-switching, 25mA at 24Vdc, 10mA at 50Vdc Switching contact resistance: 50mΩ Max. Insulation resistance: 100MΩ Min. Dielectric breakdown voltage: 500V for one minute Operating force: 1000gf Max Operation temperatures: -40°C to +85°C Storage temperatures: -40°C to +85°C Mechanical life: 3000cycles... -
DIP SWITCHES
SRLS-SM SERIES END-STACKABLE SMT T-BEND TYPE CATALOG NUMBER CONTACT FORM RATING, SWITCHING RATING, NON-SWITCHING ACTUATION FORCE DIELECTRIC STRENGTH INSULATION RESISTANCE LIFE CYCLES SRLS1XX-SM SPST 25mA @ 24 VDC 100mA @ 50 VDC 800g max. 500 VDC min. for 1 minute 1000 megohms min. @ 100 VDC 2000
