1.9mm Green 570 nm 5.5 mcd 2.1V

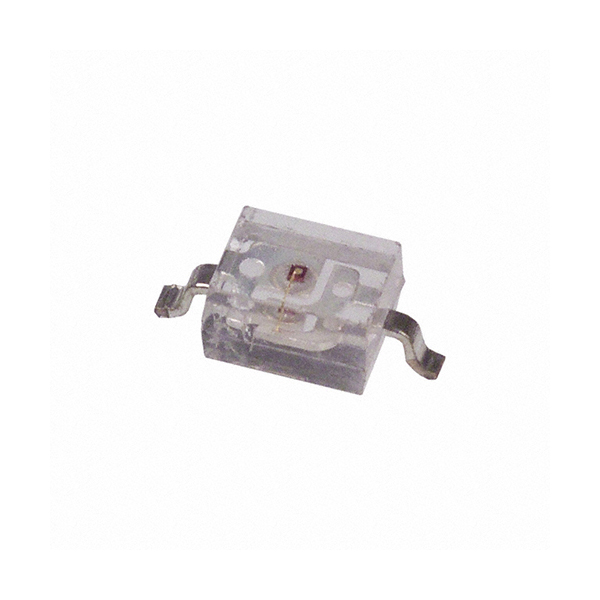

CMD28-21 Series Rectangle with Flat Top Gull Wing Leads LEDs with high intensity light output and a clear non-diffused lens. Available in multiple single color options and a 150 degree viewing angle.
Description
| LED size | 1.9mm |
|---|---|
| LED Mounting Method | SMD |
| LED Style | – |
| LED Output Color | Green |
| LED Package Color | Clear |
| Lens Type | – |
| Viewing Angle | 150 degree viewing angle |
| Luminous Intensity Typ. (mcd) | 5.5 mcd |
| Luminous Intensity Min. (mcd) | 1 mcd |
| Luminous Intensity Max. (mcd) | – |
| Peak Wavelength (nm) | 570 nm |
| LED Voltage Forward Typ. (V) | 2.1 V |
| LED Voltage Forward Min. (V) | – |
| LED Voltage Forward Max. (V) | 2.4 V |
| LED Forward Current Max. (mA) | 150 mA |
| MSL Rating | 2 |
| RoHS | Yes |
| REACH Compliant | Yes |
| Conflict Mineral Free | Yes |
| Harmonization Code | 8541.40.60.50 |
| ECCN | EAR99 |
| Country of Origin | TW (Taiwan) |
| Product Status | Active |
