Description
- Material: PVC/Rubber/Nylon
- Connector Type: Waterproof Connector
- Color: Black
- Warranty: 2 Years
- Withstand Voltage: 1.5KV
- Cable Length: Per Your Requirement

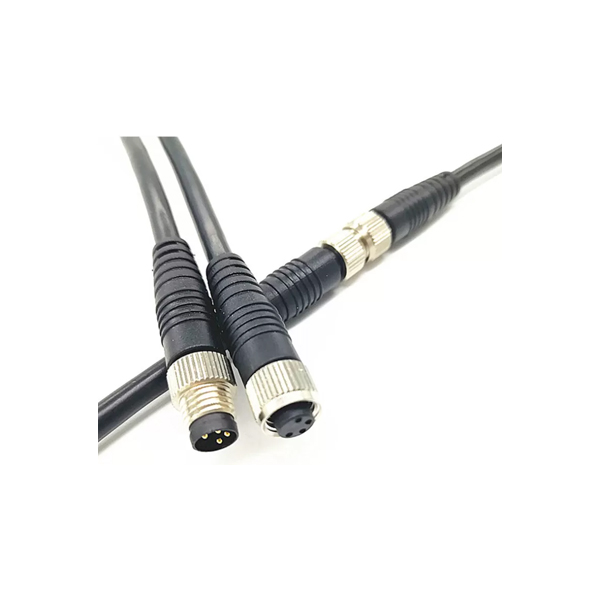

- High Light: M8 Waterproof Data Connector, 220V M8 IP67 Data Connector, 110V M8 IP67 Data Connector
Features:
- Rated current: 20A/10rms.
- 2-4PIN power supply, 5-9PIN signal is optional.
- IP67/68 rating
- Voltage rating: 300V
- Cable Range: 3~11mm
- UL, CCC, CE, RoHS approved
Main Characteristics:
- Sealed against dust and fluid (IP67)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
Operation Parameters |
|
| Voltage Rating | 110 VAC max |
| Current Rating | 6A max |
| Min Wire Size OD | 3.0 mm ~ 6 mm |
| Max Wire Size OD | 6 mm ~ 10 mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 0.5mm2 |
