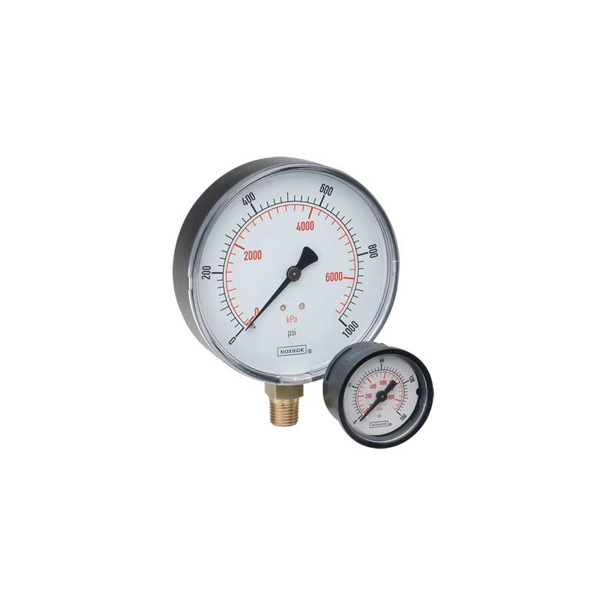

Accurate and reliable general purpose dry gauge with vacuum & compound ranges, and ABS or Steel case. Ideal for applications including hydraulics, pneumatics, medical, pumps, compressors, refrigeration controls and more.
Multiple connection options are available including panel mount. A wide variety of pressure ranges, scale options, connections sizes, and options including flanges, case options, cover rings, lens materials, pointers, and orifices are also available.
- General purpose non-fillable dry gauge
- Vacuum and compound ranges through 0 psi to 15,000 psi
- 1-1/2″, 2″, 2-1/2″ and 4″ gauge sizes
- Standard impact-resistant ABS & Steel case
- Copper alloy and Brass wetted parts
- Ideal for applications including hydraulics & pneumatics, medical, pumps & compressors, refrigeration controls, utilities and water management
Specification
| SERIES | SPECIFICATIONS | |
|---|---|---|
| Pressure ranges | 100 Series (all) | Vacuum and compound ranges through 0 psi to 15,000 psi |
| Accuracy | 15-100, 15-110, 15-120, 20-100, 20-110, 20-120, 20-148, 25-100, 25-110, 25-120 |
±2.5% full scale |
| 40-100 | ±1.6% full scale | |
| Temperature ranges* | 100 Series (all) | Media -4 °F to 140 °F (-20 °C to 60 °C) Ambient -40 °F to 140 °F (-40 °C to 60 °C) |
| Measuring elements | 100 Series (all) | Copper alloy Bourdon tube |
| Connection | 15-100, 15-110, 15-120, 20-100, 20-110 | 1/8″ NPT, brass |
| 20-148 | 1/8″ NPT/10-32 Female, brass | |
| 20-100, 20-110, 20-120, 25-100, 25-110, 25-120, 40-100 |
1/4″ NPT brass SAE J1926-3:7/16-20 |
|
| Case | 15-100, 15-110, 20-100, 20-110, 20-148, 25-100, 40-100 |
ABS (Acryl Nitril Butadien Styrol) |
| 15-120, 20-120, 25-120 | Black painted steel with chrome triangular bezel and U-clamp | |
| Bezel | 15-110, 20-110, 25-110 | Built-in bezel, molded as an integral part of the case for ease of panel mounting. |
| 15-120, 20-120, 25-120 | Chrome-plated steel triangular bezel | |
| Lens | 100 Series (all) | Acrylic |
| Pointer | 100 Series (all) | Molded plastic |
| Dial | 100 Series (all) | White background with black primary scale & red secondary scale. UV resistant. |
| Movement | 100 Series (all) | Brass & nylon, or all-brass with highly polished bearing surfaces |
