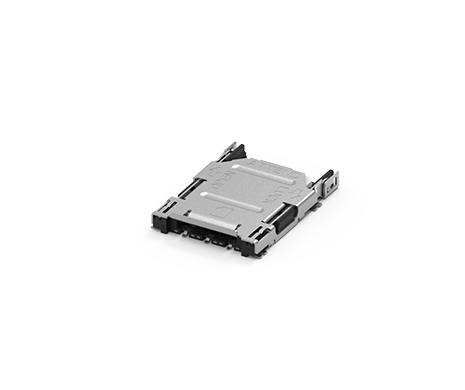

115V-AD00
115V-AD00 - Image 2

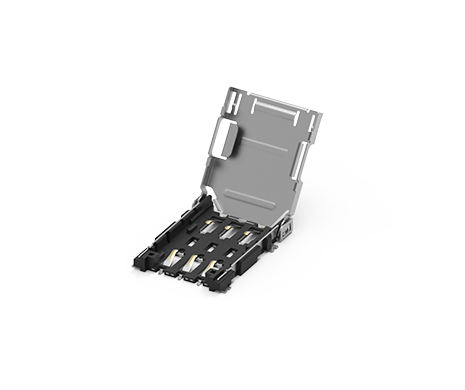

115V-AD00 - Image 3

115V-AD00

The Nano SIM (also known as the 4FF) card only measure 12.3 × 8.8 × 0.67 mm, the original design purpose was fit the mobile device. Even it reduces the area, it still maintaining the existing contact arrangements and provide all designer another solution to saving the cost in PCB layout design. As the professional communication solution provider, ATTEND Tech offering the maximizing options to fit with any request, including the bar push eject type with multiple tray option, push-push type, hinge type and dual bar push eject type.

Categories: , Tags: , ,
Attend Technology

Description

MAIN FEATURES

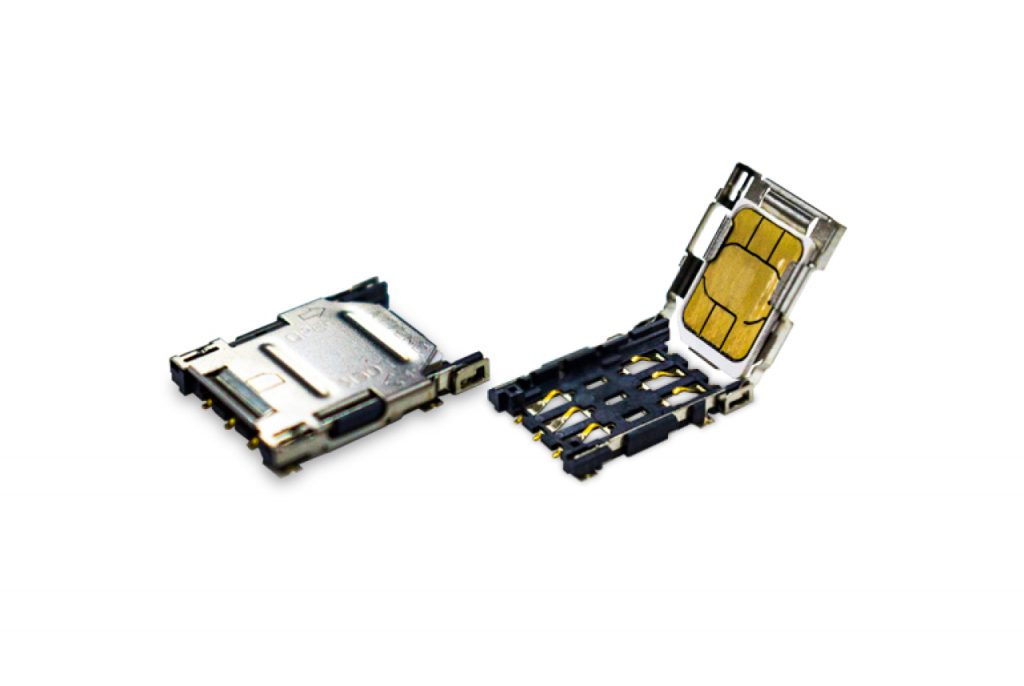

Conclusion:
Featuring on high durability and industry-leading stable design, with a wide range operating temperature from -40°C to 105°C.
  • Nano SIM card holder bump design.
  • Wide-range operating temperature from -40°C to 105°C.
  • Certified with EN/IEC 60721 vehicle environmental conditions
Application:
  • Intelligent transportation system
  • In-vehicle computer
  • Infrastructure for commercial IoT

SPECIFICATION

ELECTRICAL
Current Rating 0.5A max.
Voltage Rating 10VAC/DC
Contact Resistance 50mΩ, after 100mΩ Max.
Insulation Resistance 1000MΩ
Dielectric Withstanding Voltage 500VAC

MECHANICAL
Terminal Durability 5,000 Cycle
Contact Normal Force 0.3N min. per pin
Open & Lock Durability 100 cycles
Open & Lock Force 1.5N ~ 20N with card

ENVIRONMENTAL
Operating temperature range -40°C~+105°C
Storage temperature range -40°C~+105°C

SOLDER ABILITY
Recommended IR Reflow Temperature 260°C

Brand

Attend Technology
