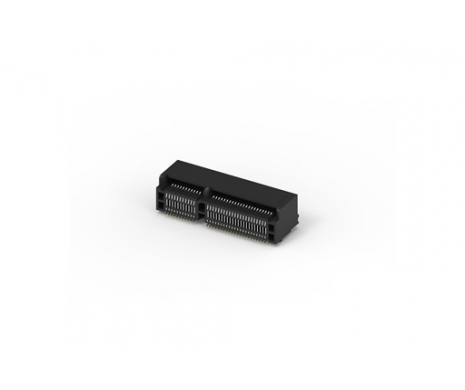

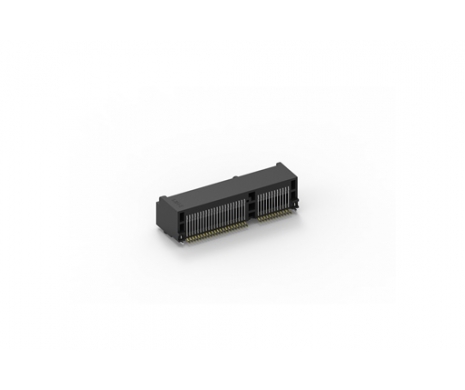

MAIN FEATURES

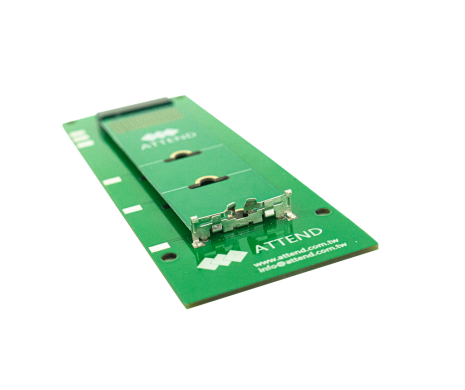

Miniature in Size:
Compared with Mini PCI Express, M.2 saves 25% in heights and 55%
in which sufficiently save the space of the PCB layout.
There are two key dimension need to check.
in which sufficiently save the space of the PCB layout.
There are two key dimension need to check.
- Dim. A：The heights are between min- 2.1mm to max- 8.5mm.
- Dim. B：For double-sided modules, this height is also important to keep in mind.
Application:
- SSD Module
- Wi-Fi Module
- NAS
- Tablets
- Gaming
- Servers
SPECIFICATION
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 50VAC |
| Contact Resistance | 55mΩ, Δ20Ω Max. |
| Insulation Resistance | 500MΩ |
| Dielectric Withstanding Voltage | 300VAC |
| Durability | 60 Cycle |
|---|---|
| Mating Force | 20N max. |
| Un-mating Force | 20N max. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow(Wave Soldering) Temperature | 260℃ |
|---|
