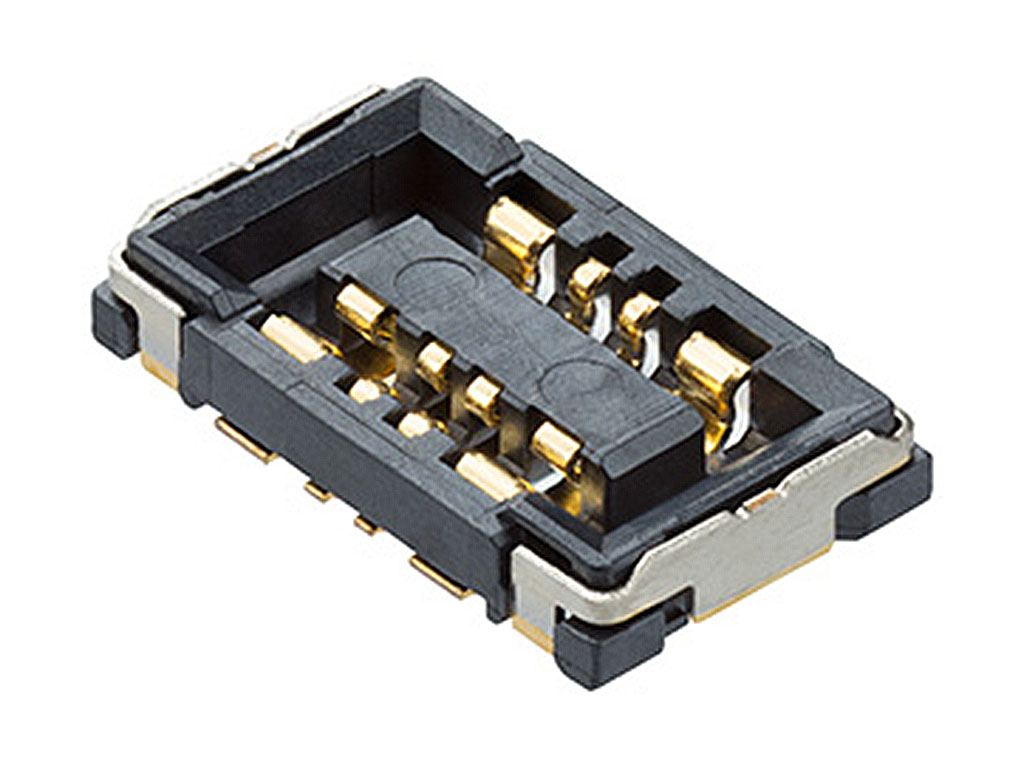

Description
General
| Status | Active |
| Category | PCB Receptacles |
| Series | 505004 |
| Application | Board-to-Board |
| Comments | * 6A of current per circuit is applicable if the circuit is constructed by two power pins via a PWB/FPC circuit |
| Overview | SlimStack Board-to-Board/Board-to-FPC Connectors |
| Product Name | SlimStack |
| Series Name | 6A, Battery |
| UPC | 191128441094 |
Physical
| (p)ower-(s)ignal Configuration | 4p – 4s |
| Circuits (Loaded) | 8 |
| Circuits (maximum) | 8 |
| Color – Resin | Black |
| Durability (mating cycles max) | 10 |
| Glow-Wire Capable | No |
| Lock to Mating Part | Yes |
| Mated Height | 0.75mm |
| Mated Width | 2.50mm |
| Material – Metal | Copper Alloy |
| Material – Plating Mating | Gold |
| Material – Plating Termination | Gold |
| Material – Resin | Liquid Crystal Polymer |
| Net Weight | 10.820/mg |
| Number of Rows | 2 |
| Orientation | Vertical |
| PCB Locator | No |
| PCB Retention | Yes |
| Packaging Type | Embossed Tape on Reel |
| Pitch – Mating Interface | 0.40mm |
| Pitch – Termination Interface | 0.40mm |
| Plating min – Mating | 0.100µm |
| Plating min – Termination | 0.050µm |
| Polarized to Mating Part | No |
| Polarized to PCB | No |
| Temperature Range – Operating | -40° to +85°C |
| Termination Interface: Style | Surface Mount |
Electrical
| Current – Maximum per Contact | 0.3A, 3.0A* |
| Voltage – Maximum | 50V AC (RMS)/DC |
