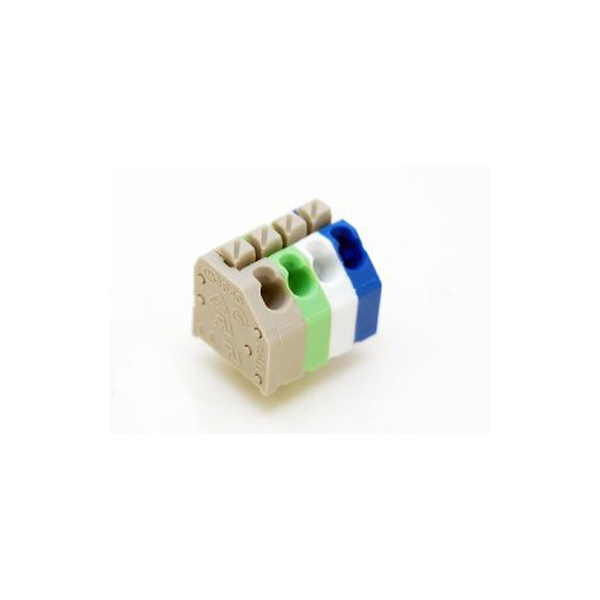

BlockMaster Electronics offer Screwless Terminal Blocks. These products are what they sound like – screwless! No screwdriver is needed for wire termination. These terminal blocks have a button, lever, slide, and poke-home versions that have a variety of centerlines.
Features:
- Standard 3.5 mm Spacing
- Angled wire insertion
- Available with or without push button
- Compact design
- No exposed metal parts
Electrical
- Current : 2A @ 300V
- Wire range: 16 to 20 AWG
- Wire section(mm2): 0.5 to .75mm2
- IR: >5M W (500V DC)
- Operating temp: -40oC to +120oC
- Stripping length: 8mm min.
- Torque: 3.5 in-lb
- PCB holes: min 1.1mm
- PCB thickness: max 2.4mm
Materials
- Housing: Polyamide 6,6 (UL94V-0)
- Contact Spring: Stainless Steel
- Terminal Pins: Brass-nickel plated
- Colors available: Gray (standard), for others contact factory
Download: PDF
