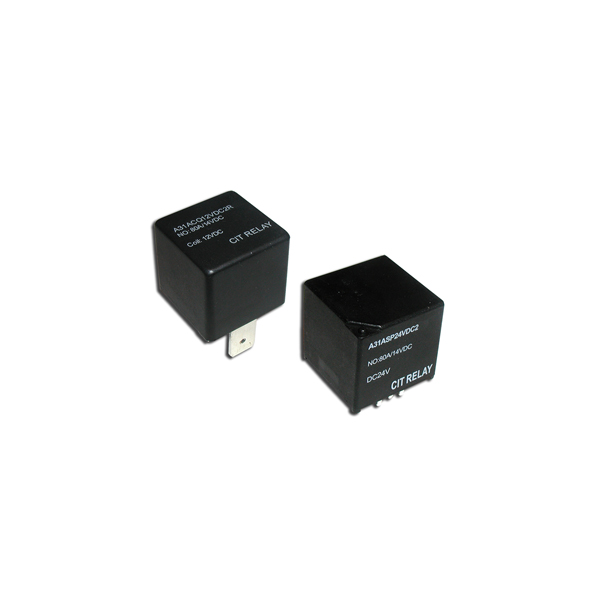

Large switching capacity up to 80A with PC pin or quick connect mounting, the A3 Series is QS-9000 and ISO-9002 certified. Offering both standard and heavy duty contact ratings , the A3 Series is available as 1A, 1B, 1C or 1U. Coil voltage choices are 12VDC or 24VDC, with coil power of 1.8W. Dimensions of this 12VDC relay are 28.5 x 28.5 x 26.5mm.
Features:
- Large Switching Capacity up to 80A
- PC Pin and Quick Connect Mounting
- Suitable for Automotive & Lamp Accessories
- QS-9000 and ISO-9002 Certified Manufacturing
Specifications
| Dimensions | Contact Arrangement |
Contact Material | Coil Voltage | Coil Power | Contact Resistance |
| 28.5 x 28.5 x 26.5 (40.0) | 1A, 1B, 1C, 1U | AgSnO2In2O3 | 12VDC, 24VDC | 1.8W | < 30m Ohm |
| Insulation Resistance | Electrical Life | Mechanical Life | Dielectric Strength |
| 100M Ohm @ 500VDC | 100K cycles | 10M cycles | Contact-to-Contact: 500V rms
Contact-to-Coil: 500V rms |
| Operating Temperature | Mounting Methods | Agency Approvals |
| -40C to 125C | PC Pin, Quick Connect |
Download: PDF
