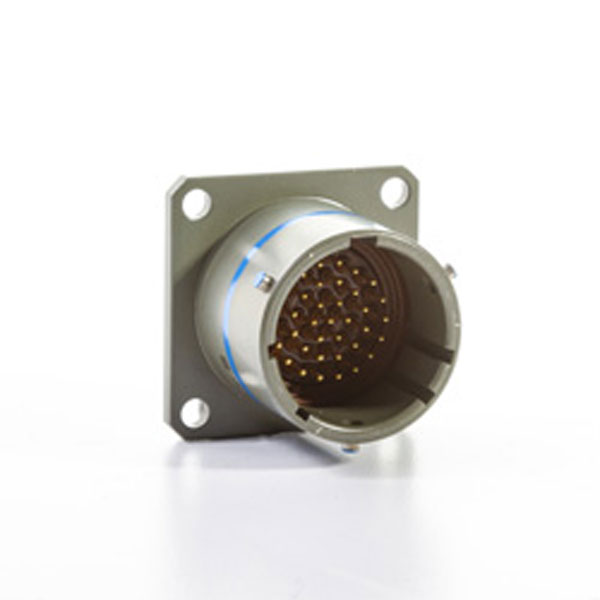

AE105E11B2PB-LC
HIGH-PERFORMANCE CONNECTORS FOR HARSH ENVIRONMENTS
Conesys D38999 connectors (Series I) are subminiature connectors that are qualified to MIL-DTL-38999 standard, making them ideal in tight spaces requiring exposure to harsh environments. They feature bayonet coupling and are 100% scoop-proof, with 5 receptacle mounting styles available. These Conesys D38999 connectors are suited for smaller wire gauge applications and have a durability of 500 mating cycles, with RFI and EMI shielding.
Description
PRODUCT INFORMATION
| Shielding: | Yes |
| Connector Type: | Circular |
| Connector Style: | Receptacle |
| Mounting Type: | Box – Rear Mount – Thru Holes |
| Contacts, # of: | 2 |
| Contact Style: | Pin |
| Termination Method: | Crimp |
| Crimp Wire Gauge: | 20, 18, 16 |
| Insert Arrangement: | 11-2 |
| Contact Size: | 2#16 |
| Contacts Supplied: | No |
| Shell Material: | Aluminum |
| Shell Plating: | Olive drab cadmium |
| Shell Color: | Olive Drab |
| Insert Material: | Thermoplastic |
| Grommet & Seals Material: | Silicone |
| Operating Temperature °F (°C): | -85 to +347 (-65 to +175) |
| Insert Rotation/Keying: | B |
| Service Rating: | I |
| Export Class: | EAR / EAR99 |
| RoHS: | No |
| Weight (lbs): | Unknown |
| Weight (g): | Unknown |
