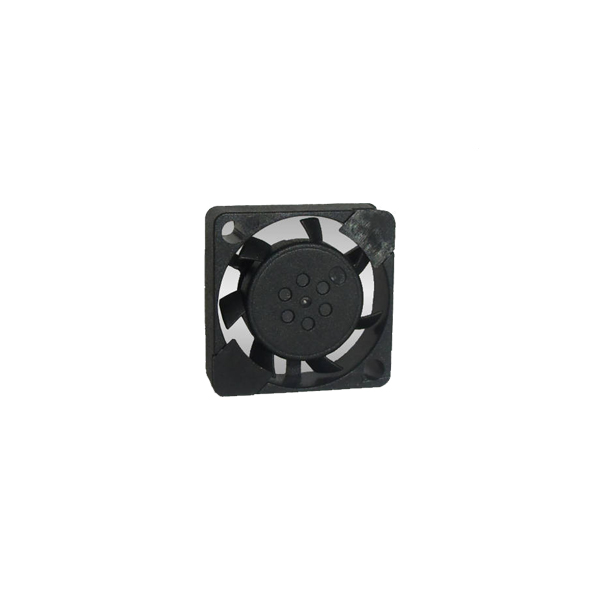

AGE02006F 20 x 6mm Axial DC Fan
20 x 6mm Axial DC Fan
Features:
- UL/cUL 62368-1 Approved Axial DC Fan
- Axial DC fan frame & impeller manufactured of PBT (UL94V-0)
- 2-Ball Bearing Axial DC Fan -10ｰC~70ｰC Operating Temperatire Range
- Fluid Bearing Axial DC Fan -10ｰC~50ｰC Operating Temperatire Range
| Height (mm) | 20 |
|---|---|
| Width (mm) | 6 |
| Voltage | 5 |
| CFM | 0.35-1.06 |
| Bearing | F |
| Tachometer (Option) | X |
| Alarm (Option) | X |
Description
Cofan DC fans are designed to meet UL 623628-1 standards. DC fans from Cofan USA are manufactured of UL 94V-0 P.B.T. blades and housings with either 2-ball bearing or sleeve bearing and UL 1571 #28AWG wire. Cofan’s brushless DC fan motors provide low db noise operation without sacrificing performance. Our light weight DC fans are used within a wide range of applications including automotive, medical, and power conversion and storage applications. Cofan U.S.A. design DC fans and cooling systems in a wide range of sizes with customization options available for your applications. Contact us today to discuss options or request a quote for the DC fan that meets your requirements.
Download: PDF
