TYPE
|
DESCRIPTION
|
|
|---|---|---|
|
Category
|
RF/IF and RFID
RF Antennas
|
|
|
Mfr
|
YIC
|
|
|
Series
|
ATIGG
|
|
|
Package
|
Tray
|
|
|
Product Status
|
Active
|
|
|
RF Family/Standard
|
Navigation
|
|
|
Frequency Group
|
UHF (1GHz ~ 2GHz)
|
|
|
Frequency (Center/Band)
|
1.575GHz, 1.6085GHz
|
|
|
Frequency Range
|
1.574GHz ~ 1.576GHz, 1.602GHz ~ 1.615GHz
|
|
|

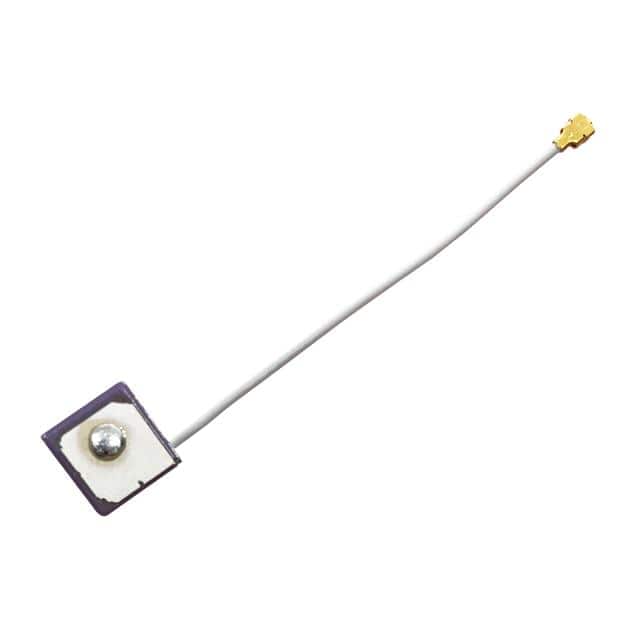

Antenna Type
|
Ceramic Patch
|
|
|
Number of Bands
|
2
|
|
|
VSWR
|
2
|
|
|
Return Loss
|
–
|
|
|
Gain
|
-3dBi
|
|
|
Features
|
Cable – 60mm, LNA, Filter
|
|
|
Termination
|
IPEX MHF
|
|
|
Ingress Protection
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Height (Max)
|
0.157″ (4.00mm)
|
|
|
Applications
|
GLONASS, GPS
|
|
