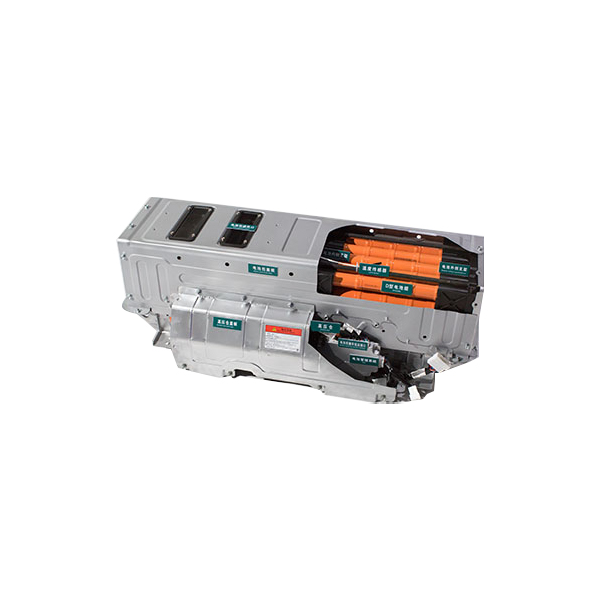

Product profile
20 modules in series have a nominal voltage of 144V, a capacity of 6000mAh, a weight of 35Kg, a maximum specific power of 660W/kg, the range of temperatures for use of -30℃-55℃, the maximum charge current of 120A, the maximum discharge current of 150A, and the service life of 3,000 times.
Fields of application
HEV passenger car, and energy storage system, etc.
Product Parameters
| Dimension | 540*210*372mm | |
| Wight | 35Kg | |
| Rated voltage | 144 V | |
| Rated capacity | 6000mAh | |
| Maximum continuous charge current (50% SOC, 25℃) | 90A | |
| Maximum continuous discharge current (50% SOC, 25℃) | 120A | |
| Internal resistance | Around 130mohm | |
| Service life | 6 years | |
| Temperature | Charge | -30℃ to 50℃ |
| Discharge | -30℃ to 55℃ | |
| Storage | -40℃ to 65℃ | |
