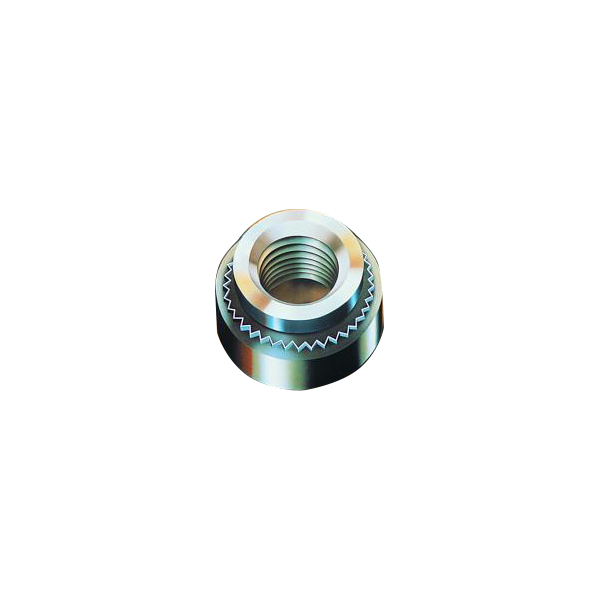

C256-3


  • Type: Unified
  • Thread Size: #2-56
  • Material: Steel, Heat Treated
  • Finish: Zinc Clear
  • Sheet Min.: 0.090
  • Hole Diameter: 0.166 +0.003 -0.00
  • A Max.: 0.165
  • B: 0.250 ±0.010
  • C: 0.070 ±0.010
  • D Max.: 0.087
  • CL to Edge Min.: 0.19
  • CRS Installation Force: 2500-3500 lbs
  • CRS Push Out: 230 lbs
  • 5052 H34 Aluminum Installation Force: 1500-2000 lbs
  • CRS Torque Out: 18 in-lbs
  • 5052 H34 Aluminum Push Out: 170 lbs
  • 5052 H34 Aluminum Torque Out: 13 in-lbs
