Internal Ceramic Patch Antenna for Global Navigation Applications

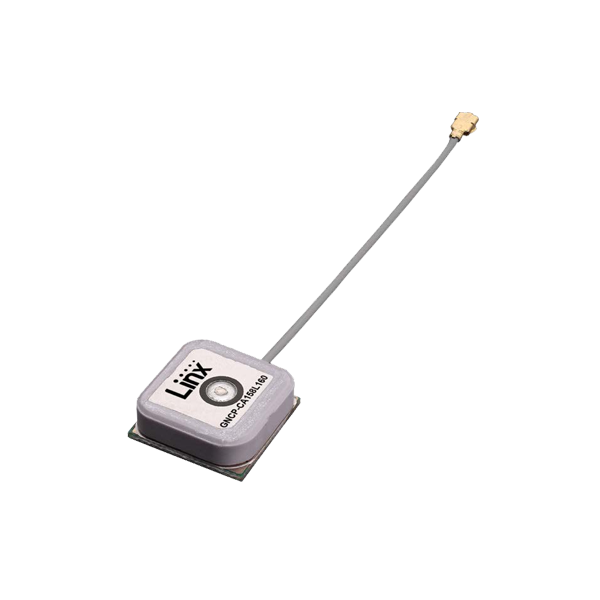

The GNCP-CA158L160 is a global navigation satellite system (GNSS) ceramic patch antenna with integrated low noise amplifier (LNA), supporting GPS, Galileo, GLONASS, Beidou, IRNSS and QZSS systems in the L1/E1/B1 bands. The 15 dB LNA provides high gain with low noise figure of 2.6 dB (typ.). The antenna has a 60 mm cable terminated in a U.FL-type plug (female socket) connector.
Features:
- Performance at 1575.42 MHz
- VSWR: ≤ 2.4
- Peak Gain: 13.9 dBi
- Axial Ratio: 5.0 dB
- Directional radiation pattern orthogonal to antenna surface
- Right-hand circularly polarized (RHCP)
- 15 dB (Typ.) LNA
- U.FL-type plug (female socket) compatible with MHF1, AMC, UMCC
Applications:
- Global navigation
- GPS L1
- Galileo E1
- GLONASS II L1
- Beidou B1-BOC
- IRNSS
- QZSS L1
- Timing solutions
