CA188L165 Active GNSS Antenna


Internal Ceramic Patch Antenna for Global Navigation Applications

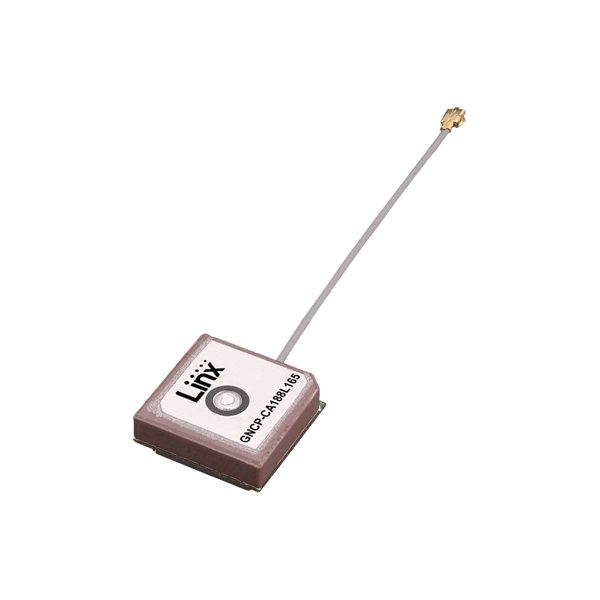

The GNCP-CA188L165 is a global navigation satellite system (GNSS) ceramic patch antenna with integrated low noise amplifier (LNA), supporting GPS, Galileo, GLONASS, Beidou, IRNSS and QZSS systems in the L1/E1/B1 bands. The 15 dB LNA provides high gain with low noise figure of 2.6 dB (typ.). The antenna has a 65 mm cable terminated in a U.FL-type plug (female socket) connector.

Features:

  • Performance at 1575.42 MHz
    • VSWR: ≤ 1.1
    • Peak Gain: 13.7 dBi
    • Axial Ratio: 9.7 dB
  • Directional radiation pattern orthogonal to antenna surface
  • Right-hand circularly polarized (RHCP)
  • Omnidirectional radiation pattern
  • 15 dB (Typ.) LNA
  • U.FL-type plug (female socket) compatible with MHF1, AMC, UMCC

Applications:

  • Global navigation
    • GPS L1
    • Galileo E1
    • GLONASS II L1
    • Beidou B1-BOC
    • IRNSS
    • QZSS L1
  • Timing solutions
