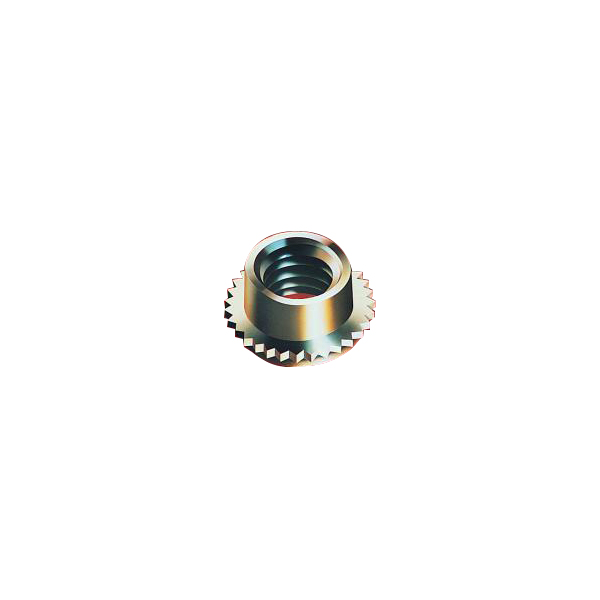

CFEOX632


  • Sheet Min.: 0.039
  • Type: Unified
  • Hole Diameter: 0.213 +0.003 -0.00
  • Thread Size: #6-32
  • Material: Stainless Steel, 300 Series
  • Finish: Passivated
  • A Max.: 0.180
  • B Max.: 0.212
  • C: 0.244 ±0.005
  • D Max.: 0.040
  • E: 0.075 +0.015 -0.000
  • CL to Edge Min.: 0.17
  • Installation Sheet Thickness: 0.040 in
  • CRS Installation Force: 2100 lbs
  • 5052 H34 Aluminum Installation Force: 1200 lbs
  • CRS Push Out: 185 lbs
  • CRS Torque Out: 20 in-lbs
  • 5052 H34 Aluminum Push Out: 105 lbs
  • 5052 H34 Aluminum Torque Out: 20 in-lbs
