- Voltage: 600VAC, 300VD
- AC Amperages: 1A to 600A
- DC Amperages: 1A to 600A
- Interrupting Rating: 200KA AC, 100KA DC
- Fast Acting & Time Delay
Applications:

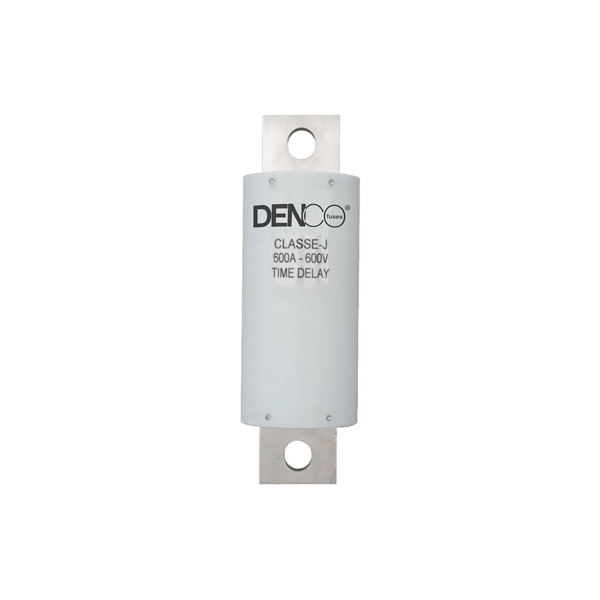

- Class J fuses are designed with special dimensions to prevent the substitution of other fuses with lower voltage ratings, interruption ratings, or current limiting capability.
- High Current Limiting for low peak let-thru current. Designed for Capacitors, Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Circuit Breakers, Lighting, Heating, and General Loads.
- UL / CSA Standard protection against short circuit.
