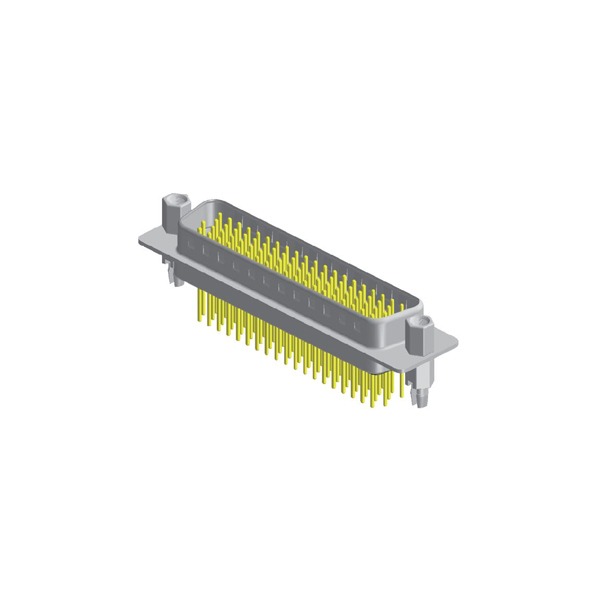

D-Sub / GDZA404

Specifications:

• Current Rating: 3.0 Ampere
• Insulation Resistance: 1000 MΩ Min
• Dielectric Withstanding: 500V AC
• Contact Resistance: 20 mΩ Max
• Operating Temperature: -20ºC to +85ºC

Materials:

• Contact Material: Brass
• Shell Material: SPCC
• Insulation Material: High Temperature Thermoplastic, 94V-0 PBT

2D Drawing:
