DIRECTIONAL COUPLERS

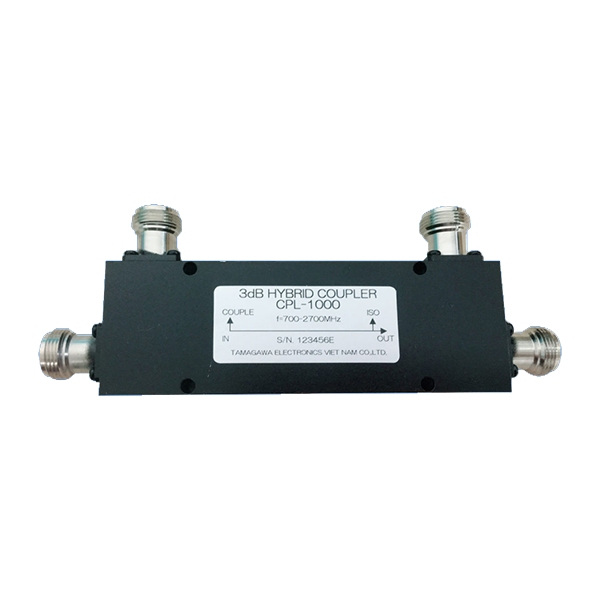

LOW LOSS DIRECTIONAL COUPLER LOW LOSS DIRECTIONAL COUPLER

Electronical specifications

Model CPL1009 CPL1000 CPL1005 CPL1006 CPL1003 CPL1004 CPL1007
Frequency 700-2700MHz
Insetiton Loss(Input-Output1) ≦3.8dB ≦3.4dB ≦1.5dB ≦1.3dB ≦0.7dB ≦0.3dB ≦0.3dB
V.S.W.R 1.2
Couple(Input -Output2) 3±0.8dB 3±1dB 7±1dB 8±1dB 10±1dB 20±1dB 30±1dB
Directivity ≧20dB  ≧20dB
Impedance 50Ω
PIMD -153dBc  CW 2×43dBm
Average MAX Power 200W

Environmental specifications

Operating Temperature -25~75℃
Storage Temperature -30~80℃
Relative Humidity 5~95%RH @+35℃
Waterproof IP6×
Lighting Protection  Non-applied

Mechanical Specifications

Model CPL1009 CPL1000  CPL1005  CPL1006  CPL1003  CPL1004  CPL1007
Dimensions(mm) W118 × D35 × H19

 (Not included projecting parts)

     W155 × D40× H 20

(Not included projecting parts)

Weight 350g 480g
Connector N-FEMALE N-FEMALE
Mounting Type 4-Φ4 TH.
