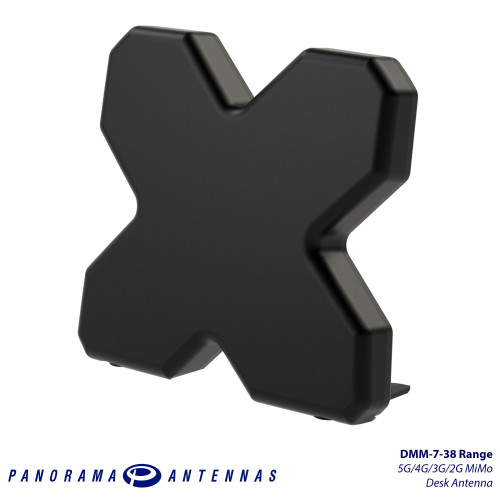

Use the DMM-7-38 to ensure a strong 4G or 3.6GHz 5G connection and fast transfer speeds for your modem or router. Multiband Portable Antenna
It’s unique ‘X’ design enables MiMo connectivity across a huge frequency range and with the options of desk or window mounting the antenna is ideal for use on the move.
This multiband portable antenna is designed to be compact and easy to use. It has feet that allow it to be used freestanding, a suction cup for window mounting, and clips for attachment to a laptop. The is a versatile and compact travel companion to ensure you have excellent signals in all situations.
Product Variants
| Part Number | Cable | Connector |
| DMM-7-38-2SP | 2m Twin RG174 | 2x SMA (m) |
| DMM-7-38-2RPSP | 2m Twin RG174 | 2x Rev Pol SMA Plugs |
| DMM-7-38-2TS9 | 2m Twin RG174 | 2x TS9 (m) |
| DMM-7-38-2CRC9 | 2m Twin RG174 | 2x CRC9 (m) |
Specifications
| Electrical Data | |
| LTE Frequencies | 698-960/1710-3800MHz |
| Typical VSWR | <2.5:1 |
| Peak Gain (dBi) | 4 |
| LTE MiMo | 2×2 |
| Max Input Power (W) | 20 |
| Pattern | Omni-directional |
| Ground Plane Independent | Yes |
| Mechanical Data | |
| Available Colours | Black |
| Length (mm) | 151 (5.94”) |
| Height (mm) | 137 (5.4”) |
| Operating Temperature | -40° / +80°C (-40° /180°F) |
| Mounting Data | |
| Mounting Type | Desk Mount; Window Mount; Laptop Mount |
Download Datasheet : Click here
