General

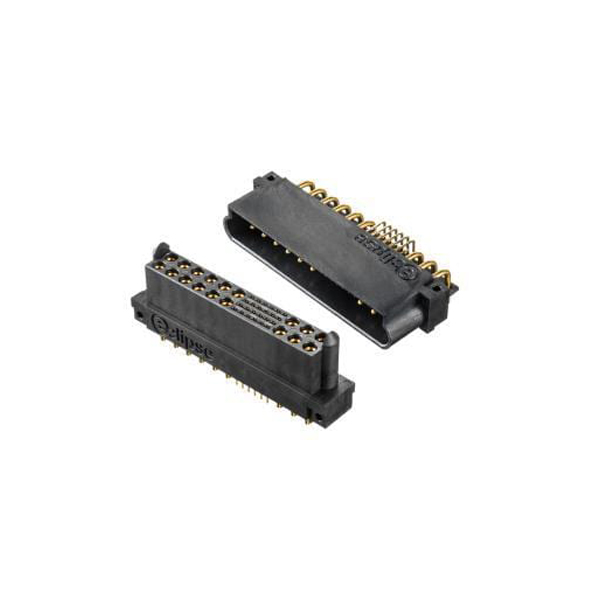

| Part Number Prefix | EC |
| Performance Level | Industrial |
| Qualifications | UL (in process), RoHS 5/6 (6/6 on select parts) |
| RoHS Compliance | RoHS 5/6 (6/6 on select parts) |
Materials
| Insulator Material | LCP (halogen-free) |
| Insulator Color | Black |
| Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
Electrical
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | Signal – 1000, Size 16 – 1750, Size 8 – 2200 |
| Working Voltage (V rms) | Signal – 300, Size 16 – 600, Size 8 – 700 |
| Initial Contact Resistance (mΩ, max) | As low as 1 |
| Contact Current Rating (A) | Up to 20 |
Mechanical
| Shape | Rectangular |
| Body Style | PCB mount |
| Insulator Construction | Monoblock |
| Polarization Method | Insulator |
| Locking System | Optional |
| Blind Mating | Included |
| Clearance and Creepage (mm min) | 1.00 |
| Contact Style | Fixed |
| Contact Size | #8, #16, Signal |
| Female Contact Design | LSA (power), Formed (signal) |
| Contact Retention Mechanism | Press-in |
| Contact Retention (N) | 4.9 to 66.7 |
| Contact Termination | PCB |
| Mating Cycles | 250 |
Environmental
| Temperature Range (ºC) | -55 to 125 |
| Lead Free Solder Process | Yes |
