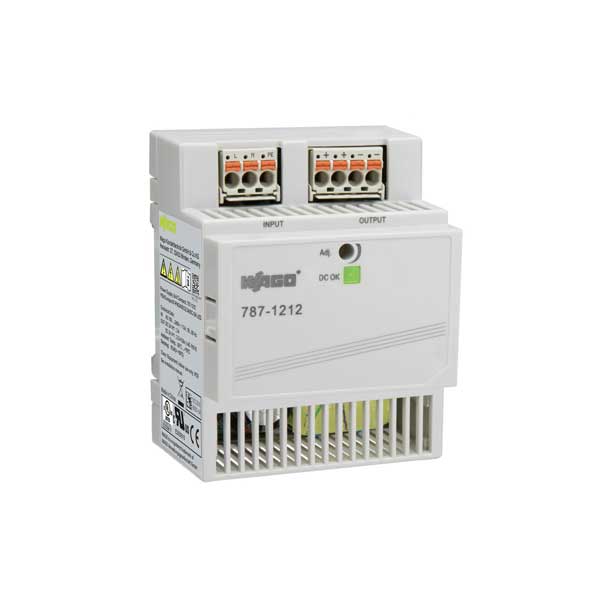

EPSITRON® COMPACT(single phase) |

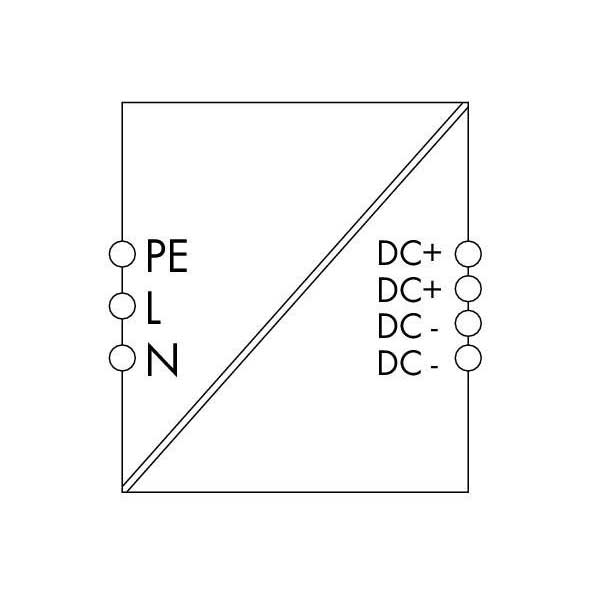

Description

Switched-mode power supply
Stepped profile for installation in standard distribution boards
Removable front panel and screw mounts for alternative installation in distribution boxes or devices
Pluggable picoMAX^® Connection Technology (tool-free)
Suitable for both parallel and series operation
Electrically isolated output voltage (SELV) per EN 60335-1 and UL 60950-1; PELV per EN 60204

Phases	1
Nominal input voltage U_{i nom}	1 x AC 100 … 240 V
Input voltage range	AC 85 … 264 V; DC 125 … 375 V
Input voltage derating	-2 %/V (< 100 VAC); -1.33 %/V (< 140 VDC)
Nominal mains frequency range	47 … 63 Hz; 0 Hz
Input current I_i	≤ 1.5 A
Discharge current	≤ 0.25 mA
Inrush current	≤ 20 A
Power factor	≥ 0.5
Power factor correction (PFC)	Passive
Mains failure hold-up time	≥ 60 ms

Nominal output voltage U_{o nom}	DC 24 V (SELV)
Output voltage range	DC 22 … 26 V (adjustable)
Default setting	DC 24 V
Nominal output current I_{o nom}	2.5 A; 2 A (< 110 VAC)
Nominal output power	60 W
Control deviation	≤ 1 %
Deviation, dynamic load change 10 … 90 %	≤ 1 %
Residual ripple	≤ 100 mV (peak-to-peak)
Overload behavior	Constant power (in overload range: 1.05 … 1.35 x I_{o nom}); Shutdown and automatic restart in the event of a short circuit or permanent overload
