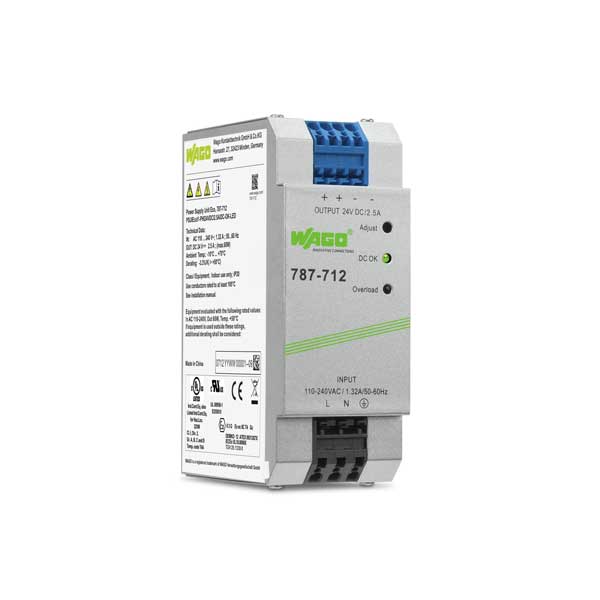

EPSITRON® ECO(single Phase) |

Description

Switched-mode power supply
Natural convection cooling when horizontally mounted
Encapsulated for use in control cabinets
Suitable for both parallel and series operation
Electrically isolated output voltage (SELV) per UL 60950-1; PELV per EN 60204

Phases	1
Nominal input voltage U_{i nom}	1 x AC 110 … 240 V
Input voltage range	AC 85 … 264 V; DC 90 … 373 V
Nominal mains frequency range	47 … 63 Hz; 0 Hz
Input current I_i	≤ 0.7 A (230 VAC); ≤ 1.2 A (115 VAC)
Discharge current	≤ 1 mA
Inrush current	≤ 30 A
Power factor	≥ 0.5 (230 VAC)
Power factor correction (PFC)	Passive
Mains failure hold-up time	≥ 20 ms (230 VAC)

Nominal output voltage U_{o nom}	DC 24 V (SELV)
Output voltage range	DC 22 … 28 V (adjustable)
Default setting	DC 24 V
Nominal output current I_{o nom}	2.5 A (24 VDC)
Nominal output power	60 W
Control deviation	≤ 1 %
Residual ripple	≤ 100 mV (peak-to-peak)
Overload behavior	Constant power (in overload range: 1.15 … 1.4 x I_{o nom}); Shutdown and automatic restart in the event of a short circuit
