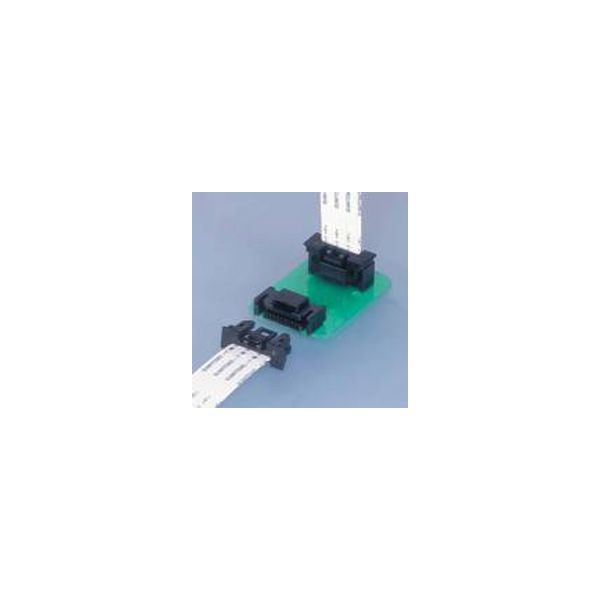

1.25mm Pitch Connector for FFC
Features:
The FOX Connector for FFC achieves high operability on the automobile assembly process. In addition, locking structure is provided on the FFC side to improve reliability of the connector.
- Reliable locking structure
Locking structure is provided on the FFC side to prevent incomplete mating and improve FFC retention force greatly.
- High resistance to scooping (kojiri)
This connector has high resistance to scooping (kojiri) insertion and withdrawal as well as general connectors for automobile by mounting a plug housing and a retainer on the FFC side.
- Temporary board retention feature
The connector can be temporarily held on a printed circuit board by clinching the contact solder tail. It prevents lifting of the connector.
- Two types of connections
This connector is available in top and side entry type depending on its mounting designs.
-
RoHS Compliant
Specification
| 01 – Connection Type: | Automotive |
|---|---|
| 02 – Product Type: | FFC/FPC Connectors |
| 03 – Pitch / Style: | 1.25mm |
| 04 – Current rating: | 1.5A AC,DC |
| 05 – Voltage rating: | 12V AC,DC |
| 06 – Temperature range: | -40 to +90 Degrees Celsius |
| 07 – Available number of circuits: | 10 |
