10.7MHz 8 pole crystal filter with 12.0kHz 6dB bandwidth
- Comprehensive stocks
- Custom specifications available
Production Description

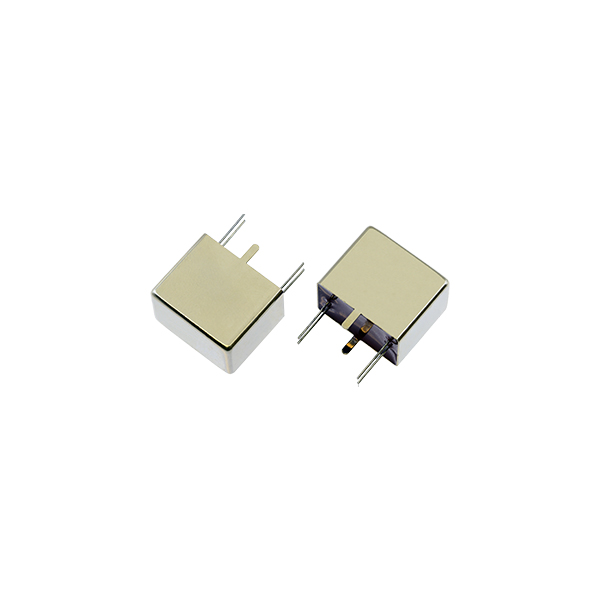

The GMCF-10 10G12D 8 pole crystal filter from Golledge with centre frequency of 10.7MHz features a 12kHz 6dB bandwidth. Discover full specifications, including insertion loss and package size here.
Specifications
| Centre frequency | 10.7MHz |
| Dimensions | 18.5 x 12.0 x 15.0mm |
| Operating temperature range | -20 to +70°C |
| Number of poles | 8 |
| Pass band | -6dB @ ±6.0kHz min |
| Attenuation band | -90dB @ ±20.0kHz max |
| In-band ripple | 2.0dB max |
| Insertion loss | 3.5dB max |
| Guaranteed attenuation | -90dB max ±20.0 ~ ±300kHz |
| Termination | 3300Ω // 2.0pF |
| Package style | F18/12P |
