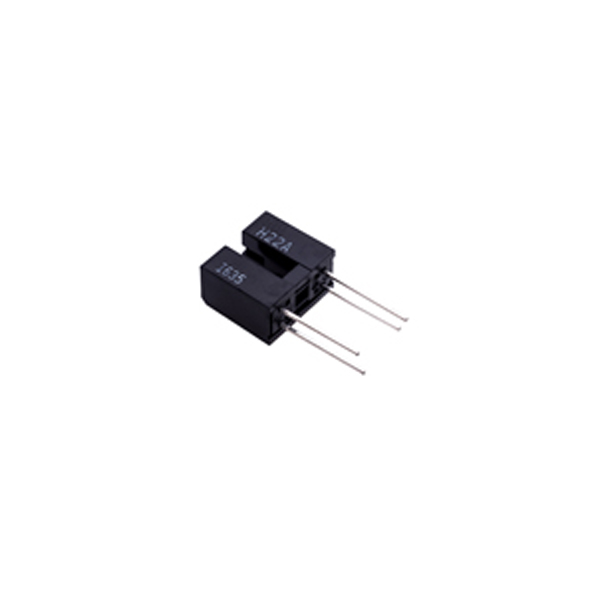

The H21Ax and H22Ax series of opaque photointerrupters are single channel switches consisting of a Gallium Arsenide infrared emitting diode and a NPN silicon photo transistor mounted in a polycarbonate housing. The package is designed to optimise the mechanical resolution, coupling efficiency, ambient light rejection, cost and reliability. Operating on the principle that objects opaque to infrared will interrupt the transmission of light between the infrared emitting diode and the photo sensor, switching the output from an “ON” state to an “OFF” state. These photoinerrupters are in PWB mounting packages while H21Ax also provides flanges for Screw Mounting.
Features:
- High Gain
- 3mm Gap between LED and Detector
- Polycarbonate Case Protection against Ambient Light
- Pb Free and RoHS Compliant
- Safety Approvals Pending
Applications:
- Copiers, Printers, Facsimiles
- Record Players, Casette Decks
- Optoelectronic Switches
Download: PDF
