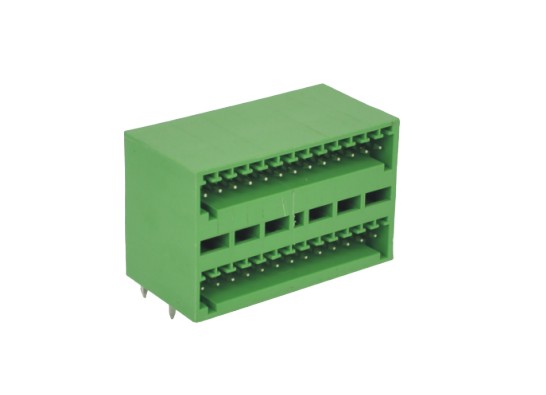

Technical data |
|||
| Technical data (UL/cUL) UL certification data (UL/cUL) Use Group | B | C | D |
| Nominal voltage (V) Rated voltage (V) | 150 | – | – |
| Nominal current (A) Rated current (A) | 4 | – | – |
| Connection capacity(AWG) Connection capacity(AWG) | – | – | – |
| Technical data in accordance with IEC and VDE | |||
| Rated insulation voltage at pollution degree 2 ( V) Rated Voltage / pollution transfection Level 2 | 160 | ||
| Rated current/conductor cross-section (A/mm2) Rated current/ connection capacity | 4/- | ||
| Solid/stranded(mm2) Single core wire (rigid)/Multi core wire (flexible) | – | ||
| Surge voltage category/pollution degree Surge voltage category/pollution degree | III/3 | III/2 | II/2 |
| Rated insulation voltage(V) | 80 | 160 | 320 |
| Rated surge voltage (kV) Rated surge voltage | 1.5 | 2.5 | 2.5 |
| General data general parameters | |||
| Screw Nut tightening torque(Nm) | – | ||
| Flange Nut thread flange thread size | – | ||
| Insulation material group Insulation material type/material group | PA66/I | ||
| Inflammblility class acc. to UL94 flame retardant grade, in line with UL94 standard | V0 | ||
| Borehole diameter/pin dimensions PCB drilling size/pin dimensions | 1.4/0.8*0.8 | ||
