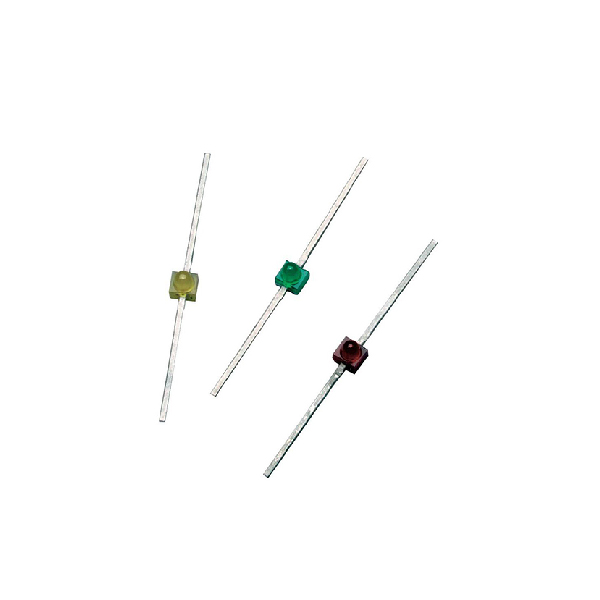

Hole 3mm (T-1) Green Low Current 565 nm 0.6 mcd 1.8V
Description
| LED size |
3mm (T-1) |
| LED Mounting Method |
Through Hole |
| LED Style |
Round with Domed Top |
| LED Output Color |
Green |
| LED Package Color |
Green |
| Lens Type |
Diffused Lens |
| Viewing Angle |
90 degree viewing angle |
| Luminous Intensity Typ. (mcd) |
0.6 mcd |
| Luminous Intensity Min. (mcd) |
0.4 mcd |
| Luminous Intensity Max. (mcd) |
– |
| Peak Wavelength (nm) |
565 nm |
| LED Voltage Forward Typ. (V) |
1.8 V |
| LED Voltage Forward Min. (V) |
– |
| LED Voltage Forward Max. (V) |
2.2 V |
| LED Forward Current Max. (mA) |
7 mA |
| MSL Rating |
2a |
| RoHS |
Yes |
| REACH Compliant |
Yes |
| Conflict Mineral Free |
Yes |
| Harmonization Code |
8541.40.60.50 |
| ECCN |
EAR99 |
| Country of Origin |
MY (Malaysia) |
| Product Status |
End of Life (EOL) |
Brand
LEECRAFT
Littelites (VCC)
VCC
