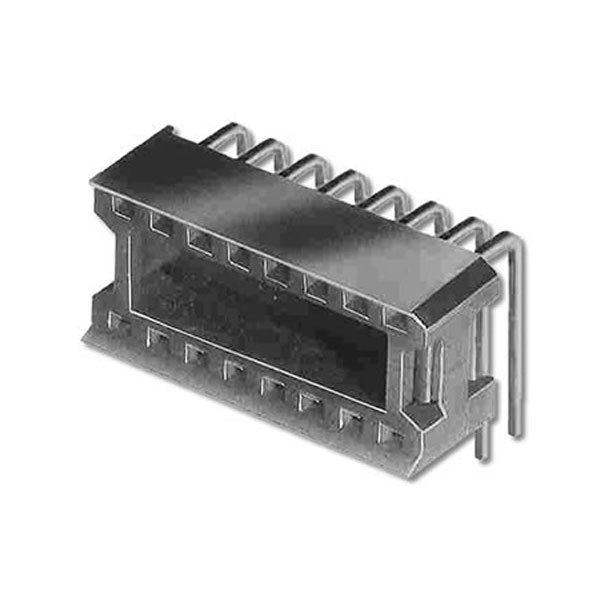

Horizontal Display DIP Socket with Bifurcated Contacts

Description

Aries offers a full line of Horizontal Display DIP Sockets for DIP packaging of LEDs, incandescent lamps, DIP switches, test points, etc.
Variations of mounting position and pin configuration provide exceptional design freedom
Restricted entry for contact protection
Accepts standard LEDs and incandescent displays as well as 0.500 [12.70] and 0.600 [15.24] high large displays

STANDARD BODY: material black UL 94V-0 4/6 Nylon
BIFURCATED CONTACTS: Grade A spring-tempered Phosphor Bronze per QQ-B-750
STANDARD CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per QQ-N-290 –OR– 200µ min. matte Sn per ASTM B545-97(2004)e1 over 50µ [1.27µ] min. Ni per QQ-N-290 –OR– 200µ [5.08µ] min. Bright 90/10 Sn/Pb per MIL-T-10727 Type 1 over 50µ [1.27µ] min. Ni per QQ-N-290
SPACER: Fish paper
CONTACT CURRENT RATING: 1.5 amps
OPERATING TEMPERATURE: 221 °F [105°C] Sn & Sn/Pb plating; 257°F [125°C] Au plating
INSERTION FORCE: 110g/pin average
WITHDRAWAL FORCE: 75g/pin average
ACCEPTS: flat leads up to 0.014 [0.36] thick and 0.020 [0.51] wide; round leads up to 0.020 [0.51] dia.
ACCEPTS LEAD LENGTHS: 0.075-0.160 [1.91-4.06]
