Technical Data
| Degree of protection | |
| Single-door cabinets | IP66 / NEMA 1, 4, 4x, 12 |
| Double-door cabinets | IP55 / NEMA 1, 12 |
| Resistance to impact | |
| Opaque door | To IK10 |
| Transparent door | To IK09 |
| Ambient temperature range | -25 ºC / +40 ºC |
| Maximum rated operating voltage | 1000 V AC / 1500 V DC |
Product range
Standard.

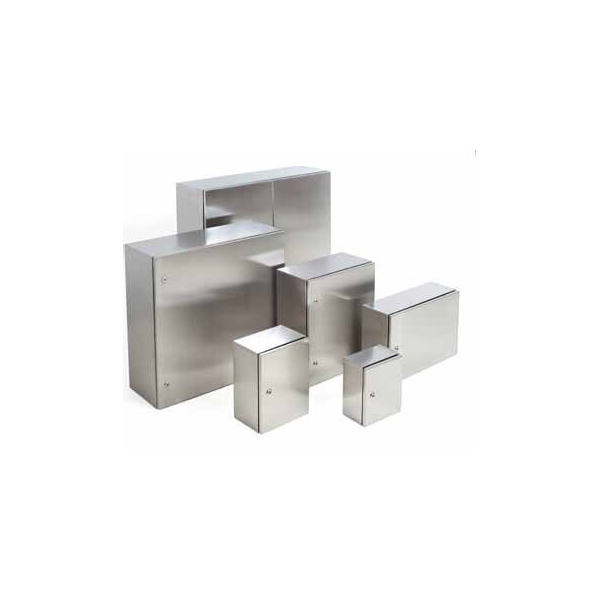

AISI 304L and 316L cabinets (with mounting plate).
To order.
AISI 304L and AISI 316L cabinets without plate.
(Add /SP to the standard reference).
To order.
AISI 304L and AISI 316L cabinets without plate.
(Add /SP to the standard reference).
Materials
AISI 304L – AISI 316L stainless steel.
Injected polyurethane sealing gasket.
Injected polyurethane sealing gasket.
Supply
Supplied in individual packaging containing cabinet, plate and accessory bag.
The cabinet is protected by a plastic bag.
Blind plate.
For cabinets with a height of up to 700 mm they are supplied unassembled inside the packaging.
For cabinets with a height of up to 800 mm and above they are supplied assembled.
The cabinet is protected by a plastic bag.
Blind plate.
For cabinets with a height of up to 700 mm they are supplied unassembled inside the packaging.
For cabinets with a height of up to 800 mm and above they are supplied assembled.
