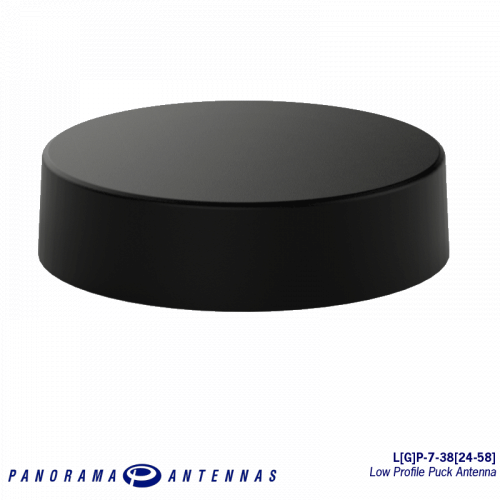

L[G]P-7-38[-24-58] |Low Profile Hockey Puck 4G/5G Combination Antenna


The L[G]P-7-38 antenna series is a range of  very low profile antennas incorporating a combination of wideband cellular element covering 4G/5G frequencies along with an optional active GPS/GNSS patch with 26dB LNA gain and an optional  dual band WiFi element all in an ultra compact housing.

  • For installation without a ground plane
  • Wideband 4G/5G LTE element
  • 2.4 & 4.9-6 GHz WiFi/WiMAX element (Optional)
  • Integrated GPS antenna (Optional)

Designed to be cost effective, the antennas are completely enclosed in a moulded housing made from weather  resistant ASA plastic and is designed for use on plastic or non-conductive . The range is supplied with full length cables with optional 1m (3′) or 3m(10′) lengths and SMA or FAKRA connectors



Part Number GPS LTE WLAN Cable Length
LPP-7-38-1SP SMA(m) 1m FR RG174
LPP-7-38-3SP SMA(m) 3m  FR RG174
LPP-7-38-1FAK FAKRA D Jack 1m  FR RG174
LPP-7-38-3FAK FAKRA D Jack 3m  FR RG174
LPP-7-38-24-58-1SP SMA(m) Rev Pol SMA 1m FR RG174
LPP-7-38-24-58-3SP SMA(m) Rev Pol SMA 3m  FR RG174
LPP-7-38-24-58-1FAK FAKRA D Jack FAKRA I Jack 1m  FR RG174
LPP-7-38-24-58-3FAK FAKRA D Jack FAKRA I Jack 3m  FR RG174
LGP-7-38-1SP SMA (m) SMA (m) 1m  FR RG174
LGP-7-38-3SP SMA (m) SMA (m) 3m  FR RG174
LGP-7-38-1FAK FAKRA C Jack FAKRA D Jack 1m  FR RG174
LGP-7-38-3FAK FAKRA C Jack FAKRA D Jack 3m  FR RG174
LGP-7-38-24-58-1SP SMA (m) SMA (m) Rev Pol SMA 1m  FR RG174
LGP-7-38-24-58-3SP SMA (m) SMA (m) Rev Pol SMA 3m  FR RG174
LGP-7-38-24-58-1FAK FAKRA C Jack FAKRA D Jack FAKRA I Jack 1m  FR RG174
LGP-7-38-24-58-3FAK FAKRA C Jack FAKRA D Jack FAKRA I Jack 3m  FR RG174
