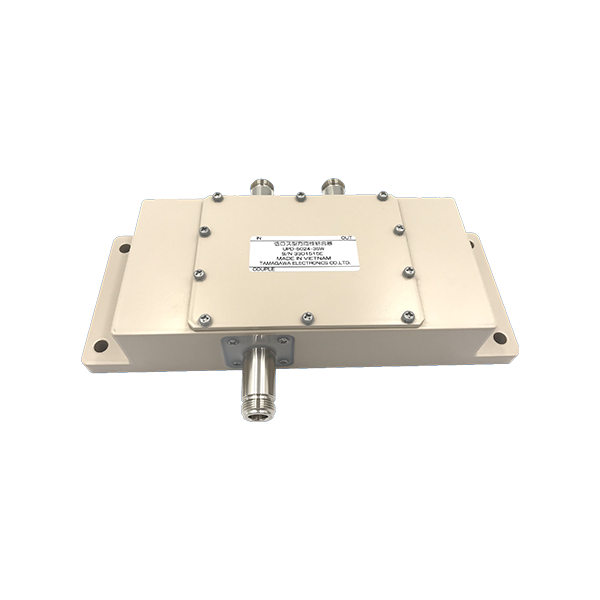

1.Electrical Specifications |
|||||||||
|
Model number
|
Frequency
|
Impedance
|
VSWR
|
Insertion Loss
|
Coupling
|
Amplitude Balance
|
Directivity
|
Input Power
|
Connector
|
|
UPD – 5024 -3N
|
3400 ~ 4900MHz
|
50Ω
|
1.5 max
|
4.2dB max
|
3dB ± 1.2dB
|
1.5dB p-p
|
15dB min
|
50W
|
N – Female
|
|
UPD – 5024 -6N
|
2.4dB max
|
6dB ± 1.2dB
|
150W
|
||||||
|
UPD – 5024 -10N
|
1.3dB max
|
10dB ± 1.2dB
|
|||||||
|
UPD – 5024 -20N
|
0.9dB max
|
20dB ± 1.2dB
|
|||||||
2.Environmental specifications |
|||
|
NO.
|
Column
|
Specification
|
Remarks
|
|
1
|
Operating Temperature
|
-20°C ~ +60°C
|
|
|
2
|
Operating Humidity
|
≦95% RH
|
no condensation
|
|
3
|
Water Proof
|
IP65
|
|
|
4
|
Weight
|
2.9Kg
|
|
|
5
|
RoHs
|
Comply
|
|
|
6
|
Dimension
|
230 x 115 x 44mm
|
|
