The LPBEM-6-60 is a high performance SiSo LTE antenna covering 617-960/1710-6000MHz.

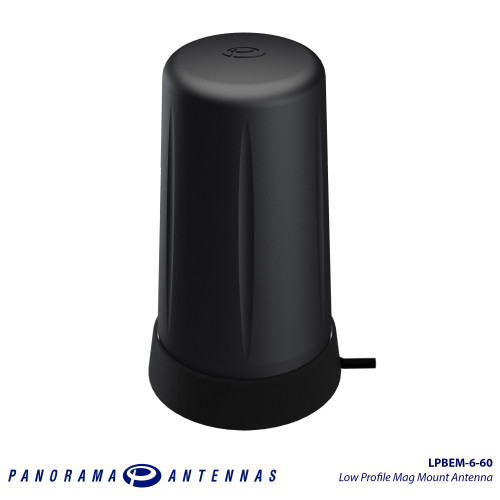

The Panorama LPBEM-6-60 is a range of low cost high performance magnetic mount antennas for temporary applications. At only 95mm (3.7”) high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear.
The LPBEM offers excellent performance across a wide bandwidth. The LPBEM covers global cellular and LTE frequencies from 617-960MHz and 1710-6000MHz making it an extremely versatile product. Although intended for magnetic mounting on a conductive ground plane the antenna can also be used for desk mounting applications with some impact on performance.
Supplied with a convenient length of flexible RG174 cable the LPBEM is easy to install and compatible with a large range of modems. Multiple units can be deployed suitably separated for MiMo applications.
Product Variants
| Part Number | Colour | Function | Cable | Connector |
| LPBEM-6-60-2SP | Black | 1x SiSo: 617-960/1710-6000MHz | 2 (6’6”) RG174 | SMA (m) |
| LPBEM-6-60-5SP | Black | 1x SiSo: 617-960/1710-6000MHz | 5 (17′) RG174 | SMA (m) |
Specifications
| Electrical Data | |
| LTE Frequencies | 617-960/1710-6000MHz |
| Peak Gain (dBi) | 8 |
| Max Input Power (W) | 25 |
| Pattern | Omni-directional |
| Mechanical Data | |
| Available Colours | Black |
| Height (mm) | 96 (3.7”) |
| Diameter (mm) | 48 (1.89”) |
| Operating Temperature | -40 / +80°C |
| Mounting Data | |
| Mounting Type | Magnetic Mount |
Download Datasheet : Click here
