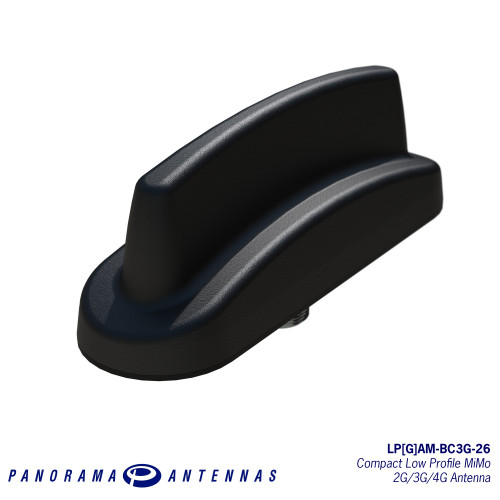

LP[G]AM-BC3G-26 | Compact Low Profile MiMo 2G/3G/4G Antenna

The LP[G]AM-BC3G-26-[XSP] range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications.

The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications that require position or timing function.

The antenna can be fitted on a non-conductive panel if required* and offers easy, quick, secure, and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 1m (3.3’) or 3m (10’) cable and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.

Product Variants

Part Number	2G / 3G / 4G	GPS / GNSS	Cable & Connector
LPAM-BC3G-26-1SP	2×2 698-960/1710-3800MHz	N/A	2x 1m RG174 SMA Plug (m)
LPAM-BC3G-26-3SP	2×2 698-960/1710-3800MHz	N/A	2x 3m RG174 SMA Plug (m)
LGAM-BC3G-26-1SP	2×2 698-960/1710-3800MHz	1562-1612 26dB LNA	3x 1m RG174 SMA Plug (m)
LGAM-BC3G-26-3SP	2×2 698-960/1710-3800MHz	1562-1612 26dB LNA	3x 3m RG174 SMA Plug (m)

Specifications

Electrical Data
LTE Frequencies	698-960/1710-3800MHz
Global Positioning	GPS / GNSS 1562-1612
LTE MiMo	2×2
Max Input Power (W)	20
Pattern	Omni-directional
Ground Plane Independent	Yes
Global Positioning Data
Frequency Range (MHz)	1562-1612
LNA Gain (dB)	26dB
Mechanical Data
Available Colours	Black
Length (mm)	150
Width (mm)	45
Height (mm)	49
Operating Temperature	-30 / + 70°C
Mounting Data
Mounting Type	Panel Mount
Mounting Method	18mm (3/4″) Mounting Bush
