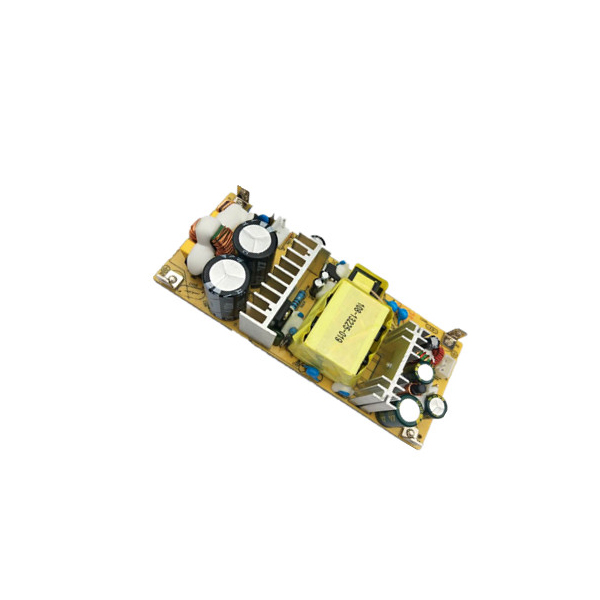

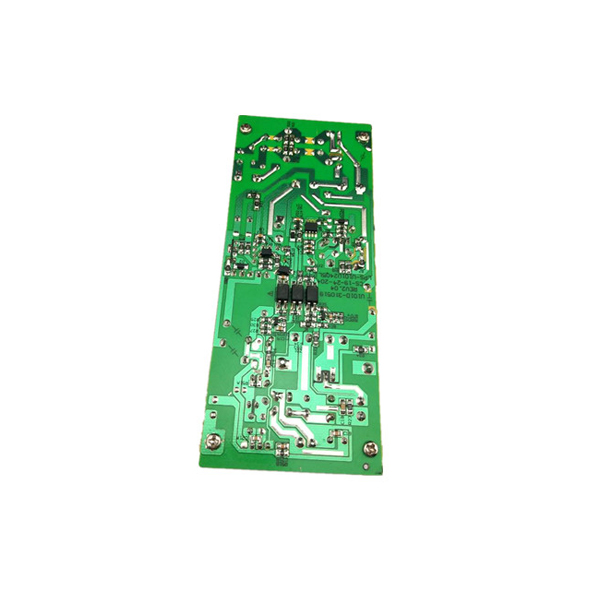

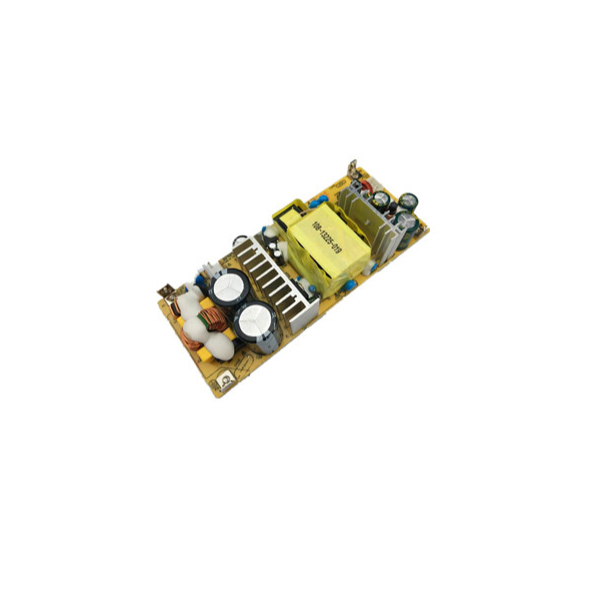

Quick Details:
Place of Origin:Guangdong, China
Brand Name:ETOP
Model Number:LPS-U101D2412L
Input Voltage:100v-240v
Output Voltage:12v 24v
Output Power:100w
Output Frequency:47~63Hz
Output Current:0-3000A
Quick Detials
Application:DC Power
Type:DC Voltage Regulator
Control mode:Constant Voltage
Power factor:0.83
Efficiency:90%
Warranty:1 year
Certificate:CE ROHS FCC SAA GS
Feature:
- Universal AC input/ full range 100V-240V
- 100% full load burn-in test
- Class I power
- Led indicator
- VH-3.96 Input/output interface
- 1year warranty
- efficiency>83%
- Protections: Short circuit/ Over current/Over voltage
Parameter Table
| Model | R&N | TOL. | Line regulation | Load regulation | Efficiency |
| LPS-U101D2412L | 100MVP-P | ±5% | ±1% | ±5% | 83% |
| 100MVP-P | ±5% | ±1% | ±5% | 83% | |
| Input voltage range & frequency range | 100V-2400VAC 47-63HZ | ||||
| Input current | 0.3A/115VAC 0.15A/230VAC | ||||
| Inrush current( Max.) | 30A/115VAC 60A/230VAC | ||||
| Leakage current(Max.) | 0.75ma/240Vac | ||||
| Set up,rise time | 2000ms,30ma/230vac 3000ms,30ms/115vac(at full load) | ||||
| Hold up time | 50ms/230vac 15ms/115vac(at full load) | ||||
| Working tem.&humidity | -10~+65℃(refer to deration curve ,20%~90% RH non-condensing | ||||
| storag tem.&humidity | -25~+75℃,10-95% RH | ||||
| tem.coefficicient | ±0.03%/℃(0~50℃) | ||||
| vibration resistance | 10-500HZ,2G 10MIN./1cycle,period for 60 min.each along X,Y,Z axes | ||||
| withstand voltage | I/P-O/P:1.5KVAC I/P-PG:1.5KVAC O/P-PG:1.5KVAC | ||||
| over load | >105%~150% hiccup mode,Auto recovery | ||||
| short circuit | >115%~135%,rate output current( constant power) | ||||
