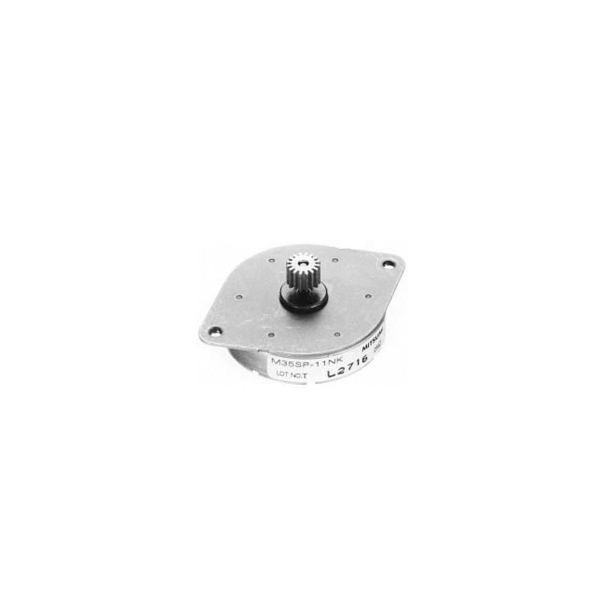

M35SP-11NK
Description
Features:
- Thin, high resolution and high-output torque.
- Superior running quietness and stability.
Uses:
- Multifunction machines, scanners, etc.
Specifications:
| Item | M35SP-11NK |
|---|---|
| Rated Voltage | DC 24V |
| Working Voltage | DC 21.6~26.4V |
| Rated Current/Phase | 360mA(PEAK) |
| Coil DC Resistance | 15Ω/phase±10% |
| Step Angle | 3.75º/step |
| Drive Method | Constant Current |
| Excitation Method | 2-2 Phase excitation(Bipolar driving) |
| Insulation Class | Class E insulation |
| Holding Torque | 11.8mN·m(0.23A/phase) |
| Pull-out Torque | 8.8mN·m/3,000pps |
| Pull-in Torque | 11.3mN·m/500pps |
| Max. Pull-out Pulse Rate | 4,300pps |
| Max. Pull-in Pulse Rate | 1,000pps |
