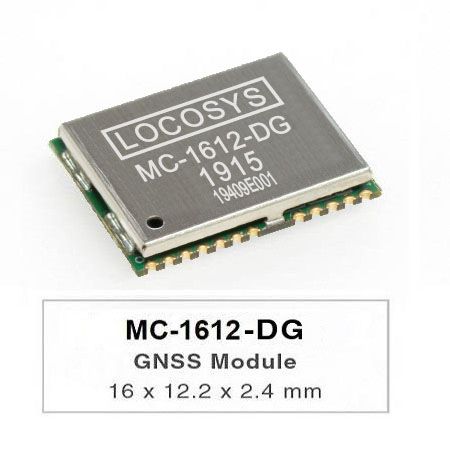

MC-1612-DG

UDR mode, MC-1612-DG when under the environment with pool signal like tunnels, urban and under grounder also unable to gain the speed through vehicle, UDR will play the role to keep positioning by the built-in MEMS which means MC-1612-DG keeps to perform the capacity of seamless positioning with UDR where the application at the environment above.

MC-1612-DG have both GNSS/ADR/UDR | 3-in-1 Seamless Positioning

MC-1612-DG offers the full-coverage positioning functionalities wherever the poor-signal environment or the installation position and keep to output high positioning performance for your applications might be under harsh environment. In the mean time, your design will be benefited from applying MC-1612-DG, the 3-in-1 solution so that easy to design (You can choose to have physical speed input or not) saving time and efforts and boost the high positioning performance exceed your expectation.

FEATURES

Support GPS, GLONASS, GALILEO, BEIDOU, QZSS
Built-in LOCOSYS Dead Reckoning (ADR/UDR) both technology software
Built-in MEMS sensor (3-axis Gyroscope and 3-axis Accelerometer)
Support MEMS Raw data high update rate (up to 100Hz)
Built-in pressure sensor (option)
Fast TTFF at low signal level
Great anti-jamming performance (due to multi-tone active interference canceller)
Automatic configuration of wheel-tick/speed input
Support sensors data feed through the UART port
Support Odometer (wheel-tick pulse) input
Support ADR/UDR automatic fast learning calibration
Small form factor 16 x 12.2 x 2.4 mm
SMD type, RoHS compliant
LOCOSYS IATF 16949 quality control
